Description:

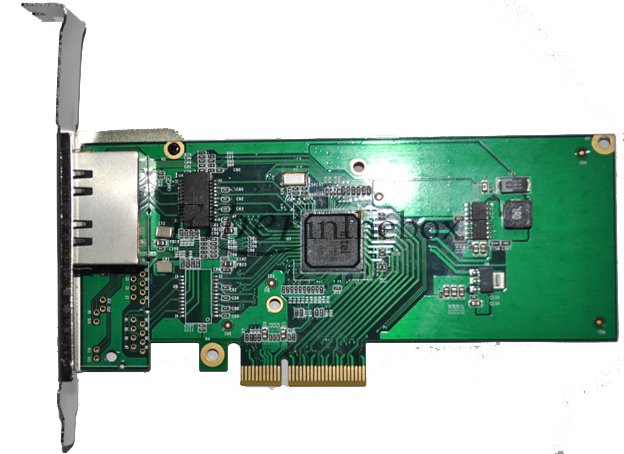

FIBERINTHEBOX’s Dual Po Copper Gigabit Ethernet PCI Express Server adapter is PCI-Express X4 Copper Gigabit Ethernet network
interface card that is based on a single chip, non-Bridged dual po GBE controller.
FIBERINTHEBOX’s Dual Po Copper Gigabit Ethernet PCI Express Server adapter is the ideal solution for
implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
FIBERINTHEBOX’s Dual Po Copper Gigabit Ethernet server adapter is based on Intel i350 Dual po
Gigabit Ethernet MAC+PHY of Intel Controller. The FIBERINTHEBOX i350 suppo PCI-SIG Single-Root I/O vi ualization and sharing specification (SR-IOV)
Key Features
Performance Features:
• 8 Transmit and 8 Receive queues per po
• Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
• Suppo PCI-SIG Single-Root I/O vi ualization Rev 1.1.
• Suppo for up to 8 vi ual function ( VFs)
• Pa ial replication of PCI Configuration space
• Suppo for 8 pools (single queue) of vi ual machine Device Queues (VMDq) per po
• Suppo Direct Cache Access (DCA)
• Suppo Intel I/O Acceleration Technology v3.0.
• TSO interleaving for reduced latency
• Minimized device I/O interrupts using MSI and MSI-X
• UDP, TCP and IP checksum offload
• UDP and TCP transmit segmentation offload (TSO). Machine
• SCTP receive and transmit checksum offload
• Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
• EEE ( IEEE 802.3az) for reduced power consumption during low link utilization periods
Copper Gigabit Ethernet 1000Base-T:
• Independently copper Gigabit Ethernet channels suppo four Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T)
• Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation
• Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex.
• RJ-45 female connectors
Common Key features:
• Suppo PCI Express Base Specification 2.1 (5 GTs)
• High performance, reliability, and low power use in Intel i350 Dual integrated MAC + PHY and SERDES chip Controllers
• Ultra deep, packet buffer per channel lowers CPU utilization
• Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations
and TCP segmentation
• Server class reliability, availability and performance features:
• Link Aggregation and Load Balancing
• Priority queuing – 802.1p layer 2 priority encoding
•Vi ual LANs –802.1q VLAN tagging
• Jumbo Frame (9.5KB)
• 802.x flow control
• Multicast/ broadcast Packet replication
• Suppo s Vital Product Data (VPD)
• LEDs indicators for link/Activity/Speed status
.JPG)
.JPG)
Technical :
|
Copper Gigabit Ethernet Technical - (1000Base-T) Adapters: |
|
|
IEEE Standard / Network |
Gigabit Ethernet, 1000Base-T |
|
Full duplex / Simplex |
Support both Simplex & Full duplex operation in all operating speeds |
|
Auto negotiation: |
Auto-negotiation between Full duplex and simplex operations |
|
Data Transfer Rate: |
1000 Mb/s, 100 Mb/s and 10 Mb/sec in simplex mode per port. 2000Mb/s 200 and 20 Mb/s in full duplex mode per port. |
|
Cables and Operating distance: |
10Base-T Category 3, 4, or 5 maximum 100m |
.
|
Operating Systems Support |
|
|
Operating system support: |
Windows 2003 |
|
General Technical |
|
|
Interface Standard: |
PCI-Express Base Revision 2.1 ( 5 GTs) |
|
Board Size: |
Low profile short add-in card: 167.64mm X 68.91mm (6.60”X 2.713”) |
|
PCI Express Card Type: |
X4 Lane |
|
PCI Express Voltage: |
+3.3V +-9%, |
|
PCI Connector: |
Gold Finger: X4 |
|
Controller: : |
INTEL I350AM2 |
|
I/O: |
Dual RJ45 located on edge of the board |
|
Weight: |
150g (5.29 oz) |
|
Power Consumption |
5.04 W, 0.42A at 12V: |
|
Holder: |
Metal Bracket: Full Height/Low profile Height |
|
Operating Humidity: |
0%–90%, non-condensing |
|
Operating Temperature: |
0°C – 45°C (32°F - 122 °F) |
|
Storage: |
-40°C–65°C (-40°F–149°F) |
|
EMC Certifications: |
FCC Part 15, Subpart B Class B |
|
MTBF: |
66 Years. |
|
LEDs |
|
|
LEDs: |
(3) LEDs per port |
|
LEDs location: |
LEDs are integrated on RJ-45 connector |
|
Connectors: |
(4) Shielded RJ-45 |
Order Information:
|
P/N |
Description |
Notes |
|
FS1GT2I350 |
Dual Port Copper Gigabit Ethernet PCI Express Server Adapter |
X4,Based on INTEL I350AM2, Low-Profile, RoHS compliant |
