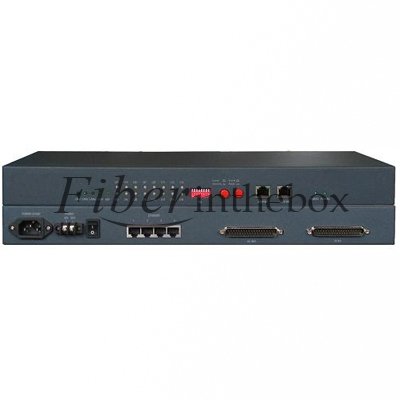

16E1/Ethernet conve er realize Ethernet transparent transmission over 1~16E1 with maximum transmit rate of 31.68Mb/s. The conve er adopts with international standard protocol (G.7041ã€G.7042ã€G.7043ã€G.8040) at all layers and able to intercommunicate with other supplier’s products followed the same standard. The device not only provides perfect alarm/status indication for E1 and Ethernet interface, but also with senior management function such as Ethernet data traffic statistics etc. The device is with high integration, low power consumption, stable performance and easy to use.
Features:
- According with IEEE 802.3, suppo 10Base-T, 100Base-T.
- Suppo flexible setting of 1 to 16 E1 channels, auto detect the number of E1 channels and time-delay, select available E1 channels when reset.
- Provide 2 loop functions: local E1 loop, remote E1 loop.
- Ethernet transmission transparent,suppo AUTO-MDIX, straight and crossover auto-adapt.
- Can transmit super-long frame of IEEE 802.1Q, suppo Ethernet exchanger with VLAN function.
- Suppo E1 channel hot plug, and auto detect available E1 channels.
- Suppo reset remote system from local system.
- 16 E1 can have 10 ms time-delay, CRC alarm limitation can auto insulate bad-quality transmit channel by configuration, and is single direction insulation. when one direction error rate over limitation, cut only this direction, the other direction not affected. ( the two directions need not symmetry.)
- Power supply option: AC220V, DC-48V. The positive and negative terminal can be exchanged for DC-48V, easy for installation and maintenance.
- Super conve er - 16 E1 - Ethernet 10/100 conve er / inverese multiplexer, to get up to 32 Mbit/s speed from binding up to 16 E1 channels
Specifications:
- E1 interface parameter:
- Channel capacity: 16 Channels
- Bit Rate: 2.048 Mb/s ±50 ppm
- Line Code: HDB3
- Line Impedance: 120 Ohm / 75 Ohm
- Connector: RJ-45 or BNC (via adapter cable)
- Pulse Shape: ITU-T G.703.
- Jitter Performance: ITU-T G.823
- clock: inter-clock, line-clock
Ethernet interface:
- Interface Rate: 4 po s x 10/100Mbps
- Duplex: half and full duplex self-adapt.
- Interface character: match IEEE802.3, IEEE802.1Q (VLAN)
- Connector: RJ45, suppo auto-mdix
- MAC address capability: 4096
Power
- DC: -48V (-36 to -72V); +24 V (Optional)
- AC: 90 to 260 VAC ; 47 ~ 63Hz
- Power Interface: DC power terminal/AC socket
- Power Consumption: 8 W maximum
Working environment
- Operating temperature: 0 to 60°C
- Storage temperature: -20 to +70°C
- Relative humidity: 5% to 90% (25°C no condense)
