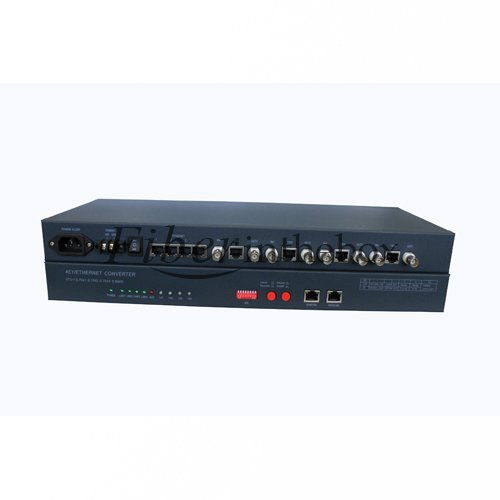

4E1 to Ethernet 10/100Base-T Protocol/Interface Conve er is designed to provides easy conversion from 1 to 4 E1 channels to Ethernet interface.
Features:
- According with IEEE 802.3, suppo 10Base-T, 100Base-T
- Suppo flexible setting of 1 to 4 E1 channels, auto detect the number of E1 channels and time-delay, select available E1 channels and more;
- Provide 2 loop functions: local E1 loop, remote E1 loop.
- Ethernet transmission transparent,suppo AUTO-MDIX, straight and crossover auto-adapt.
- Can transmit super-long frame of IEEE 802.1Q, suppo Ethernet exchanger with VLAN function.
- Suppo E1 channel hot plug, and auto detect available E1 channels.
- Suppo reset remote system from local system.
- 4 E1 can have 10 ms time-delay, CRC alarm limitation can auto insulate bad-quality transmit channel by configuration, and is single direction insulation. when one direction error rate over limitation, cut only this direction, the other direction not affected.
- Power supply option: AC220V, DC-48V. The positive and negative terminal can be exchanged for DC-48V, easy for installation and maintenance.
Specifications:
- E1 interface parameter:
- Channel capacity: 4 Channels
- Bit Rate: 2.048 Mb/s ±50 ppm
- Line Code: HDB3
- Line Impedance: 120 Ohm / 75 Ohm
- Connector: RJ-45 or BNC
- Pulse Shape: ITU-T G.703.
- Jitter Performance: ITU-T G.823
- Clocking: internal-clock, line-clock
Ethernet interface:
- Interface Rate: 10/100Mbps
- Duplex: half and full duplex self-adapt.
- Interface character: match IEEE802.3, IEEE802.1Q (VLAN)
- Connector: RJ45, suppo auto-mdix
- MAC address capability: 4096
Power
- DC: -48V (-36 to -72V); +24 V (Optional)
- AC: 90 to 260 VAC ; 47 ~ 63Hz
- Power Interface: DC power terminal/AC socket
- Power Consumption: 8 W maximum
Working environment
- Operating temperature: 0 to 50°C
- Storage temperature: -20 to +70°C
- Relative humidity: 5% to 90% (25°C no condense)
