110 Wiring Block from Fiberinthebox is a flexible, reliable and high density system that exceeds the ANSI/TIA/EIA-568-B.2 Category 5e component performance specifictions. These are used for voice and data applications where space limits the use of relay rack. A high density 110 termination field for voice and data applications can be created by mounting 110 Wiring Blocks on wall or backboards. 110 Wiring Block are available in pairs of 50, 100 with or without standoff legs.

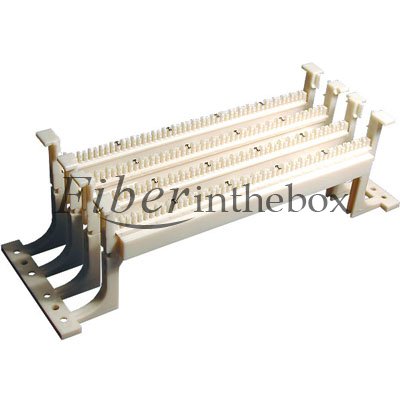

Note: This picture is for 110 Wiring Block 100 Pairs with Legs. Please just take it as a reference.
Features:
Exceeds ANSI/TIA/EIA-B.2 Category 5e Specifications
Cost-effective, reliable solution for high-density applications
Interoperability with existing 110 systems
Flexible solution consisting of 50 and 100 pair wiring blocks
100 pairs 110 wiring block without legs
Available provide 50,100 pairs,easily installation
The most competitive price
Material specifications:
Wiring Blocks: Polycarbonate UL 94V-0
Conductor: Solid or Stranded 26-22 AWG
100 pairs 110 wiring block
Wiring block are designed to suppo voice and high-speed data application
Offering a reliable and economical high-density system
The terminal block accommodate 22-26 AWG with insulation diameter of 0.4-0.6mm
IDC contract material:phosphor bronze with tin plating
Available with T568A,T568B wiring pattern
PC,combustibility achieved GB/T5169.7-1985 stand.
Easily to adjust and installation
Standards/Compliance
Meets ANSI/TIA/EIA-568-B.2 Category 6 Requirements
Meets ISO/IEC Generic Cabling Standard 11801:2002 ed.2.0
Meets CENELEC Generic Cabling Standard EN50173-1:2002
Electrical Specs according to UL 1863
RoHS Compliant
