110 Wiring Block from Fiberinthebox is a flexible, reliable and high density system that exceeds the ANSI/TIA/EIA-568-B.2 Category 5e component performance specifictions. These are used for voice and data applications where space limits the use of relay rack. A high density 110 termination field for voice and data applications can be created by mounting 110 Wiring Blocks on wall or backboards. 110 Wiring Block are available in pairs of 50, 100 with or without standoff legs.

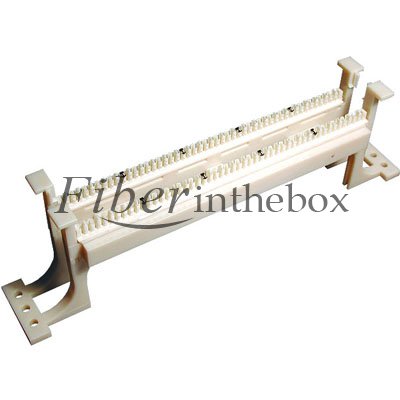

Note: This picture is for 110 Wiring Block 50 Pairs with Legs. Please just take it as a reference.
Features:
Exceeds ANSI/TIA/EIA-B.2 Category 5e Specifications
Cost-effective, reliable solution for high-density applications
Interoperability with existing 110 systems
Flexible solution consisting of 50 and 100 pair wiring blocks
19" international standards,meet T568A & T568B
UL,RoHS,CE,ISO9001
Competitive Price
Material specifications:
Wiring Blocks: Polycarbonate UL 94V-0
Conductor: Solid or Stranded 26-22 AWG
Designed and produced according to the ISO/IEC 11801 standards
Suppo voice and high - speed data application
Material for base and IDC Housing: PC UL94V-0
IDC contract mateiral: phosphor bronze with tin plating over nickel
Wire: 22-26 AWG with a insulation diameter of 0.4-0.64 mm
Voltage rating: 125 VAC RMS,Current rating: 1.5 AMP
Contact resistance: 100 milliohms max
Insulation resistance: 1000 megohms min @ 500 VDC
Dielectric strength: 750 VAC RMS 60HZ, 1MIN
Standards/Compliance
Meets ANSI/TIA/EIA-568-B.2 Category 6 Requirements
Meets ISO/IEC Generic Cabling Standard 11801:2002 ed.2.0
Meets CENELEC Generic Cabling Standard EN50173-1:2002
Electrical Specs according to UL 1863
RoHS Compliant
