The price on the website is per meter price. The more, the cheaper. The Multimode is for 50/125 or 62.5/125, pls specify your multimode type when you buy it.

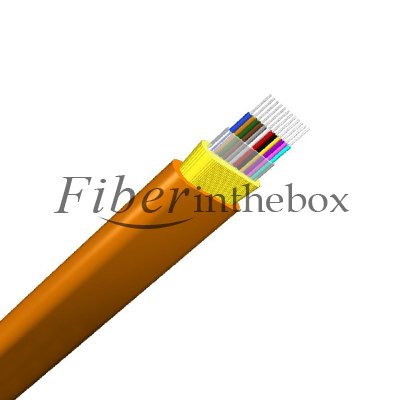

4 Fibers Multimode Indoor Ribbon Flat Optical Fiber Cable
Specifications:
1.Indoor ribbon flat optical fiber cable,used in indoor cabling;
2.PVC/LSZH/TPU Jacket,kevlar;
3.ISO9001,TLC,RoHS
Applications:
- Used in indoor cabling, especially used in good laying conditions;
- Used in optical connections in optical communication equipment rooms and optical distribution frames, optical apparatus and equipments;
- Used in pigtails and patch cords;
- Used as access building cable.
Features:
- Good mechanical and environmental characteristics;
- Flame retardant characteristics meet the requirements of relevant standards;
- The mechanical characteristics of jacket meet the requirements of relevant standards;
- Soft, flexible, easy to lay and splice, and with big capacity data transmission;
-
Meet various requirements of market and clients.
Fiber CountCable Dimension
(mm)
Cable Weight
(kg/km)
Tensile
(N)
Crush
(N/100mm)
Min. Bend Radius
(mm)
Range of Temperature
( o C)
Long TermSho TermLong Term
Sho TermDynamicStatic-20~+6042.5×3.56.88020020050020H10H62.5×4.07.48020020050082.5×4.59.680200200500122.5×5.09.880200200500Note:
- All the values in the table, which are for reference only, are subject to change without notice;
- The cable dimension in the tahle, which are according to single ribbon, are subject to change with the ribbon count;
- H is height of the flat cable;
Options:
- Fiber Count: The fiber count is usually 4, 6, 8 or 12 or other specified fiber count by clients ;
- Jacket Material: Environmental flame-retardant polyvinyl chloride (PVC), environmental low smoke zero halogen flame retardant polyolefin (LSZH), thermoplastic polyurethane (TPU), or other contracted material;
- Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
- Cable Dimension: The nominal cable dimension, or other contracted dimension;
- Delivery Length: 1km or 2km, or other contracted length;
- Other Requirements: Other contracted special request.
