Description

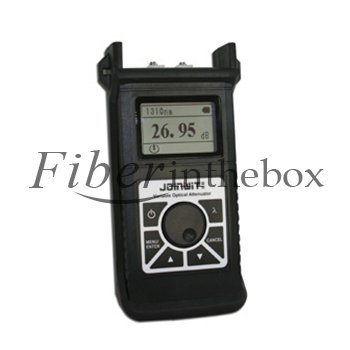

JW3303 handhold optical variable attenuator is used for continuously variable optical signal attenuation. As the attenuator is used in the laser system for the on-line testing, there, thereforeJW3303 can be used in the digital system of communication devices (such as: PHD, SDH) and also in the system of adopting analog modulation (CATV)
Application
Telecom maintenance
CATV maintenance
Comprehensive cable construction system
Optical instruments research and development
Optical communication education and lab testing
Other optical project
Features
Stepwise attenuating by circumgyrated dial: attenuating step 0.05dB
Provide with the function of displaying dB and dBm attenuating value
Alternative function of 10 minutes Auto-off without operation
After off the instruments, the system will have the memorizing of the attenuating value and the attenuating step, in order to restore the system back to the previous shut down state when open the instruments next time
Specifications
|
Type |
JW3303 |
|
Attenuating wavelength Range |
1260~1650nm |
|
Fiber Model |
9/125um SM |
|
Optical Connector |
FC/PC |
|
Calibrated wavelengths |
1310/1490/1550/1625 |
|
Measurement Range |
2.5~60dB |
|
Resolution |
0.05dB |
|
Minimize Inse ion Loss |
<2.5dB |
|
Linearity |
±0.5dB |
|
Repeating |
±0.2dB |
|
Attenuating Accuracy |
±0.8dB |
|
Back Reflection |
≈35dB(typical value40dB) |
|
Max input |
∠20dBm |
|
Displaying type |
lattice 128*64 black and white, white back ground light |
|
Rechargeable batteries |
7.4V |
|
Power supply adaptor |
7~8.5V |
|
Operation temperature |
0~40℃ |
|
Storage temperature |
-10~60℃ |
|
humidity |
0~85% (non-condensation) |
|
Weight |
450g |
|
Type |
JW3303 |
|
Attenuating wavelength Range |
1260~1650nm |
|
Fiber Model |
9/125um SM |
|
Optical Connector |
FC/PC |
|
Calibrated wavelengths |
1310/1490/1550/1625 |
|
Measurement Range |
2.5~60dB |
|
Resolution |
0.05dB |
|
Minimize Insertion Loss |
<2.5dB |
|
Linearity |
±0.5dB |
|
Repeating |
±0.2dB |
|
Attenuating Accuracy |
±0.8dB |
|
Back Reflection |
≈35dB(typical value40dB) |
|
Max input |
∠20dBm |
|
Displaying type |
lattice 128*64 black and white, white back ground light |
|
Rechargeable batteries |
7.4V |
|
Power supply adaptor |
7~8.5V |
|
Operation temperature |
0~40℃ |
|
Storage temperature |
-10~60℃ |
|
humidity |
0~85% (non-condensation) |
|
Weight |
450g |
