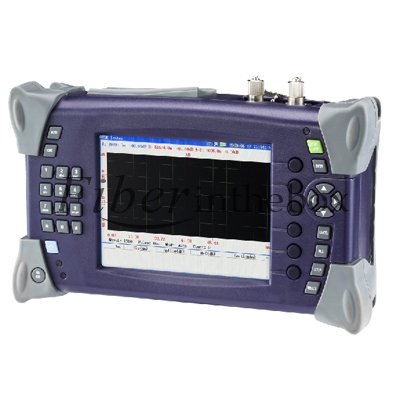

Name: FITB-2000 OTDR (15/13 dB)
Brand: Fiberinthebox
Price: 2,006.40 USD
Availability: In Stock
Rating: 5.0 (98 reviews)

Description

Description
FS-X000 OTDR series handheld optical time domain reflectometry (OTDR) is the latest FTTx optical fiber cable-based test instruments. Integrated machining, elegant appearance, splash design, small size, light weight, durable. Built-in three test wavelengths and visual fault locator (VFL) function is tailored FTTx network testing a new product.

Specification

Model	FS-2000	FS-4000	FS-5000
wavelength	1310nm/1550nm +20nm	1310nm/1550nm +20nm	1550nm/1625nm +20nm
Fiber Type	Single-Mode Fiber	Single-Mode Fiber	Single-Mode Fiber
Dynamic Range	15/13dB	28/26dB	28/26dB
Accuracy	+1m+ Sampling interval +0.003% Distance)( not include Refractive index into error)
Event dead zone	1.6m
Resolution	0.1m-16m
Range (Single-Mode Fiber)	1.6m/0.1m-16m
Pulse width (Single-Mode Fiber)	1.6km~80km/10ns~10240ns
Loss Threshold	0.01Db
Sampling Points	65K
Linearity	0.05dB/dB
Waveform storage	800
Refractive index setting range	1.00000~2.00000
Display	Color TFT LCD 5.1 inch 648*480 (Optional touch screen operation) Optional touch screen operation
Interface	USB
Optical output interface	FC/UPC(Standard, optional universal connector)
Power supply	AC/DC Adapter, Voltage, 100V~240V(1.5A) Frequency :50Hz DC 15V~20V(2A) Li battery 7.4V 3200mAh Battery last 10 hours(Normal temperature)
Language	English
Environment	Work temperatureï¼š0â„ƒï½ž40â„ƒ(rechargeï¼š5â„ƒï½ž40â„ƒ) Storage temperatureï¼š-40â„ƒï½ž70â„ƒ(not include battery) Humidityï¼š5%ï½ž95%
Size	215130mm66mm/1000g
Weight	1kg

Note: This price is only for FS-2000 OTDR.

Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For the OTDR, we provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of this FS-2000 OTDR (15/13 dB), please feel free to contact us. We will try our best to provide you the best service.
