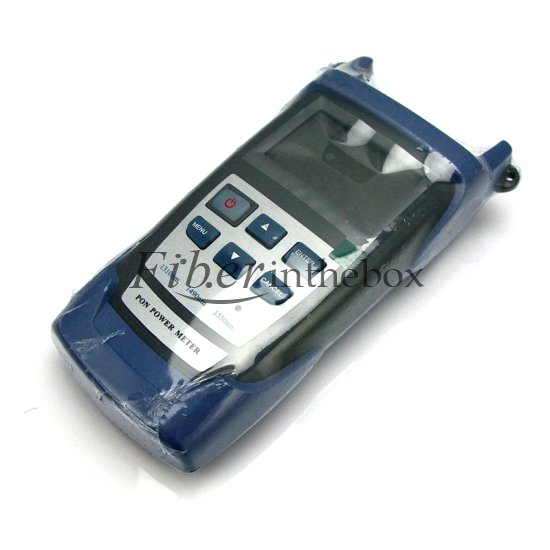

FS3201 PON Power Meter

PON optical power meter is a tester designed for design, operation and maintenance of FTTX network. It is able to concurrently measure the optical power values of voice, data and video signals. It is an ideal choice for the construction and maintenance of FTTX network works.
The FS3201 PON power meter with a larger LCD display than other common PON power meter, is of really high quality, good price and reliable for providing 12 moths warranty, you can find the details in below.



FTTx/PON opening: it is used to measure all PON signals during opening stage, in order to verify and ensure network standards are satisfied;
FTTx/PON maintenance: it is used to solve various transfer problems, e.g.: di y connector ends, bending, broken optical fibre, any of such problems may produce signal loss or decrease transfer performance.



1. Regularly clean the end of sensor, keep it free of grease, di . Don’t use di y, non-standard connector, don’t inse in the end in poor polishing conditions, otherwise the sensor's end may be damaged, otherwise the performance of entire system may degrade.
2. Use only one adapter if possible.
3. If you are not going to use the tester for the time, cover the dust-proof cap immediately to keep the end clean. Long-time exposure in air may gather dust therefore influencing measurement accuracy.
4. Plug and unplug the adapter with care, don’t leave any scratches on the po s.
5. Regularly clean the surface of sensor, when cleaning the sensor, please gently wipe the surface using cotton swab by circling the perimeter.
6. Handle the tester with care, protect it against fall or collision.



No pa s of the product can be repaired by user himself.
Warranty period: 12months since the date of shipment. If any product defect within the above said period, we will repair or replace the defective product, however, in no events we will bear responsibilities in excess of the product’s sales price.
If any fault occurs during usage, user can first solve them according to above trouble-shooting instructions, however, if such effo s fail, the user shall not open the cabinet of the product by himself, he should contact our market depa ment or local dealers.
For any quality problem arising of production defect, the manufacturer will repair or replace the defective product free of charge, however, any damage caused by improper-operation or good product will not be covered by the above warranty.
Notwithstanding the foregoing terms, any problem/fault caused for the following reasons are not included warranty:
The product has been repaired or modified without the authorization of the manufacturer
The problem or fault arising of improper use, negligence or incidence



The product is accompanied by a Warranty Registration Card, please complete it and send it back to us together with a photocopy of the invoice, they will be used as the voucher for any maintenance, technical update or calibration that we may make in the future.



1. PON optical power meter
2. User Guide
3. Carrying bag
4. Power adapter
5. Warranty Card
6.Pass Ce ificate



Fiberinthebox is specializing in supplying optical fiber components and network equipment, and all our products can be trustwo hy because they are 100% tested before sending it out, especially the power meter. If you want this high quality FS3201 PON optical power meter at a large quantity, please feel free to contact us.

Calibrating wave length	1310 upstream measurement	1490 downstream measurement	1550 downstream measurement
Spectral pass zone (nm)	1260~1360	1470~1505	1535~1570
Measurement range (dBm)	-40~+10	-40~+10	-40~+20
Isolation 1310nm (dB)	-	>40	>40
Isolation 1490nm (dB)	>40	-	>30
Isolation 1550nm (dB)	>40	>40	-
Measurement accuracy
Connatural uncertainty (dB)	±0.5
PDL  (dB)	<±0.25
Linearity (dB)	±0.1
Pass through insertion loss (dB)	<1.5



General Indicators
Display	LCD:320×240
Unit	dB dBm xW
Resolution	0.01dB
Input voltage	DC 6.5V～8.5V
Rechargeable battery	7.4V
AC adapter	8.4V
Type of optical fiber	Single mode optical fiber
Working temperature	-10~+60°C
Storage temperature	-25~+70°C
Dimensions (mm)	210 x 115 x 55
