Description

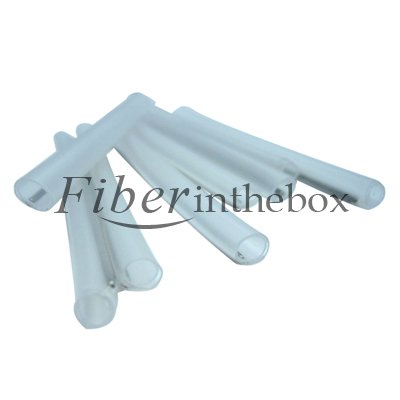

This products is made up of cross linked polyolefin heat-shrinkable tubes, hot melt tubes and Stainless steel needle. It is specifically designed for the protection of optical fiberal closure.
Features
Protect connection point, improve the mechanical strength, it is most reliable way to protect the fusion.
Easy to operate, reducing the risk of fiber damage during installation
Transparent tube, it is easy to see the status of optical fiberal closure
Min. shrinks temperature:120°C, shrink very fast and very easy to installation
Work temperature high (-55°C~100°C), widely used
Sealing structure let closure have good resistance to temperature and humidity performance.
Ordering Information
| Type | Length of tube | Hot-melt tube | Steel needle | |||
| After recover | Length | Inside dia | Length | Inside dia | Length | |
| FS-1045 | 2 | 45 | 0.5 | 45 | 1 | 39 |
| FS-1060 | 2 | 60 | 0.5 | 60 | 1 | 56 |
Quantity: 50pcs/pkg
Note: We also provide this kind of protection sleeves with 1000pcs/pkg and good price.
Fiberinthebox can provide both domestic and foreign products, and for this kind of fusion splicer assemblies that used in the optical fiber fusion splicing, most of them can be used together with the foreign famous brand fusion splicer. If you want this Heat Shrinkable Fiber Optic Splice Protector FS-1060 in a large quantity, welcome to contact us at service@Fiberinthebox.com, we will provide you the best price.
Specifications
|
Item |
Test method |
Performance |
|
Temperature |
IEC216 |
-55°C~100°C |
|
Tensile strength |
ASTM D 2671 |
18MPa |
|
Elongation at break |
ASTM D 2671 |
700% |
|
Density |
ISO R1183D |
0.94g/cm3 |
|
Dielectric strength |
IEC243 |
25kV/mm |
|
Volume resistance |
IEC243 |
1015Ω |
|
Dielectric constant |
IEC243 |
2.5 |
|
Longitudinal change |
ASTM D 2671 |
±5% |
|
Eccentricity |
ASTM D 2671 |
105 |
