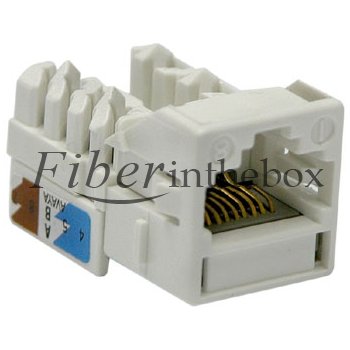

Description
The Category 6 keystone jacks are designed for superior performance that meets or exceeds industry standard TIA/EIA 568-A requirements.
The jacks are designed to work in conjunction with the wall plates and surface boxes or any standard keystone and angled multimedia wall plate or patch panel.
Specifications
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements
Meet Category 6 ISO11801 compliant
Unshielded keystone jack
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20Milli-ohms max
Insulation resistance: 500M-ohms min
Dielectric withstand voltage: 1000 V AC RMS, 60Hz 1min
Easy to be terminated low attenuation loss and high return loss
High reliability and superior performance
Note: The picture is only for reference, please make the object as the standard.
As one kind of the network accessories, a keystone module is a standardized snap-in package for mounting a variety of low-voltage electrical jacks or optical connectors into a keystone wall plate, face plate, surface-mount box, or a patch panel. We Fiberinthebox.com can supply a lot of this kind of products, if you are interested in this Cat6 Keystone Jack/ Network Jack Module, or want it in a large quantity, welcome to contact us.
