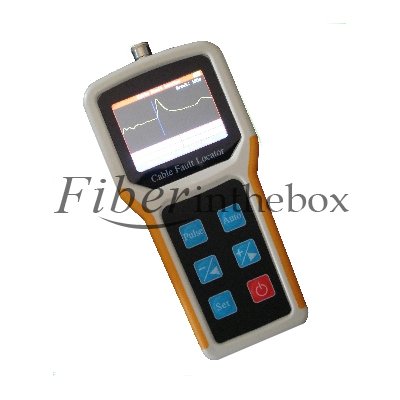

FS260 Cable Fault Locator

FS260 cable Fault Locator (hereinafter to be referred as FS260) is used for test cable break, sho circuit faults of telephone cable, data cable, high frequency cable, coaxial cable, and so on. Its the upgrade version of TL250 cable fault locator which has been ceased production.



FS260 can do auto test of various faults, and the details as follows:
1) DGAC (Digital gain auto control). This will reduce the waveform distoration caused by the Potentiometer knob; and also can be used for pure line adjust which is convenient for manual test
2) Auto identification technology of the digit wave form: The unit can automatically indentify the waveform that difficult to judge manually and test the dead zone clearly.
3) Adopts high end (True 32-bit) ARM chip to cooperate with FPGA (Field programmable gates array technology), which will be in favor of performing the complicated operation and judging the faults wave correctly.
4) Big screen color LCD display, human interface with CN/EN menu, six keys to perform all operation completely.
5) High-energy lithium battery, which ensure the working time last for 10 hours



Fiberinthebox is specializing in manufacturing optical transceivers and subsystem for optical fiberal communications in Metro Networks, Access Networks, Fiber Channel, and FTTX, etc. That means, we are specializing in supplying optical fiber components and network equipment. And if you are interested in this FS260 cable Fault Locator and want to know more details, welcome to contact us. We will provide you a special discount at a large quantity.

1) Max measurement range (Manual): 8KM
2) Max measurement range (Auto): 4km
3) Max resolution: 1m
4) Dead zone: 0m
5) Power Consumption: 1W
6) Weight: 0.5kg
7) Dimensions: 204*100*36mm
8) Working temperature (Degree): -15 ~+45
Storage temperature (Degree): -20~+55
