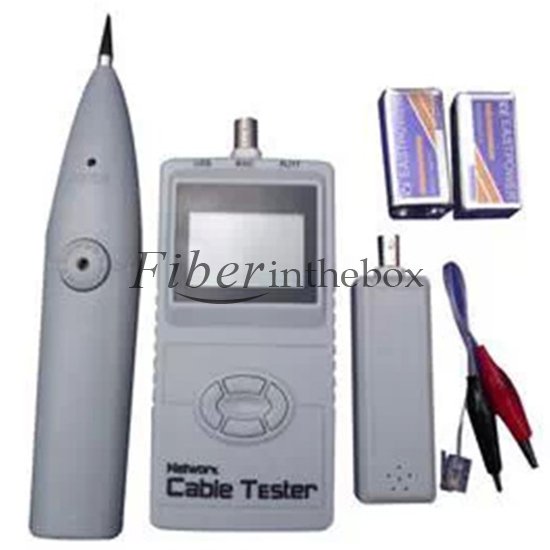

LCD Cable Tester SML-8868

Features and functions
1. With M-S and M-R two methods to check error such as open, sho Circuit, jumper, reverse, crossover, matching connections and cable, break point for 5E/6E cable, BNC cable, USB and phone line and visually displays on the LCD
2. To test crosstalk error on cable to shut out the potential issue of slow network speed.
3. searching-lines feature make you to find the cable, telephone lines and other various metal wires among the numerous lines, help to find the line what you want at another remote end by the size of the prompt volume, with anti-interference and high sensitivity, the volume control knob on receiver can be adjusted for sensitivity.
4. With the M-S, M-R, OPEN three methods to measure the cable length up to 1,200 meters for network cable, coaxial cable, telephone line, USB cable. The accuracy of the measurement of length and location of cable break point is up to 98%.
5. Can determine which side is open between two cables ends tested, and accurately determine the exact open point in the cable end (left, right or middle).
6. with a low voltage display when voltage is too low
7. Automatically time-delay shut-off.
8. With a self-test and adjust functions to various conditions such as the automatic replenishment for battery capacity and ambient temperature while changes.
9. Can test the connection between network cable and router is good or not, and can be live tested.

Warnings
1). The tester uses a stacked battery 9V power.
2). The tester will shut off automatically if it does not work for 15 minutes.
3). LCD display low battery when this battery with too low voltage and influence its operation , this series inspectors are developed for testing different cable terminals, they cannot be misused, otherwise they will be damaged permanently.

Technical Specification
1) Display: Dot 128x64 Sequence LCD lattice (valid visual field 48x32mm)
2). Power Supply: a stacked Battery of 9V with power consumption 15mA
3). Low battery display: The 9V battery voltage is lower than 6.5V, LCD prompts low battery.
3). Dimension:149x 66x23 mm
4). Type of Test Cable
STP/UTP twisted cable, Coaxial cable, telephone line, USB line.
5). Tester Po
Tester RJ45 master po (M),tester LOOPBACK RJ45 po (S),BNC,USB (A),RJ11,far-end recognizer RJ45 po (R),The extra BNC ,.USB(B) and RJ11 conve ers are used to measure and check the continuity of coaxial cable , telephone line and USB line
6). Working Ambient Temperature:-10℃------+60℃.
7). Length Measurement of Twin Twisted Cable
Scope: 1---1200 M
Calibration accuracy: 2 %( +/-0.5M or +/- 1.5ft) (Calibration cable>5M)
Shipment accuracy: 3 %( +/-0.5M or +/- 1.5ft) (AMP, AT&T Class 5 cable)
length unit: Meter, Feet or Yards.
8) Length Calibration:
User can set calibration factor by himself with a given length cable, the length of calibrating  cable is more than 10 Meter.
9).Wire Sequence and Locating Cable Error:
Check errors such as open circuit, sho circuit, reverse connection, crossover or cross-talk,interference
10). Locating cable
8 far-end passive test jacks (ID 1 > ID8)
11). Automatic time-delay Shut off Time:
The tester does not operate for15 minutes.
12). Scanning and Locating Wiring 5E, 6E, Coaxial cable, USB line and telephone line
13). the sensitivity is changed by adjust the volume switch
