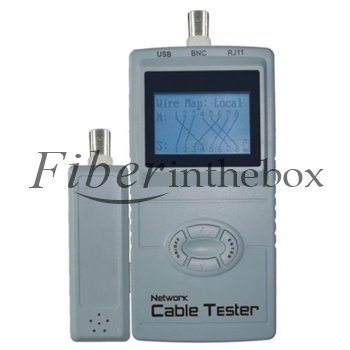

Function and Features
1. With M-S and M-R two methods to check error such as open, sho circuit, jumper, reverse, crossover, matching connections for 5E/6E network cable, BNC cable, USB and phone line and visually displays on the LCD
2. To test crosstalk error on cable to shut out the potential issue of slow network speed.
3. Can accurately determine the exact open point in the crystal end of cable (left, right or middle)
4. With a function of automatically time-delaying power off
5. With a low voltage display when voltage is low.
6. With a self-test and adjust functions to various conditions such as the automatic replenishment for battery capacity and ambient temperature while it changes.
Warnings
1). The tester uses a stacked battery 9V power.
2). The tester will shut off automatically if it does not work for 15 minutes.
3). LCD display low battery when this battery with too low voltage and influence its operation , this series inspectors are developed for testing different cable terminals, they cannot be misused, otherwise they will be damaged permanently.
Technical Specification
1).Display: Dot 128x64 Sequence LCD lattice (valid visual field 48x32mm)
2). Power Supply: a stacked Battery of 9V with power consumption 15 mA.
3). Low battery display
if the 9V battery voltage is lower than 6.5V, LCD display low battery.
3). Dimension: 149x 66x23 mm
4). Type of Test Cable
STP/UTP twisted cable, Coaxial cable, telephone line, USB signal line.
5). Tester Po
Tester RJ45 master po (M),tester LOOPBACK RJ45 po (S),BNC,USB (A),RJ11,far-end recognizer RJ45 po (R),The extra BNC ,.USB(B) and RJ11 conve ers are used to measure and check the continuity of coaxial cable , telephone line and USB line
6). Working Ambient Temperature:-10%~60%
7).Wire Sequence and Locating Cable Error:
Check errors such as open circuit, sho circuit, reverse connection, crossover or cross-talk,interference.
8). Automatic time-delay Shut off Time:
The tester does not operate for15 minutes.
9) The sensitivity is changed by adjust the volume switch.
