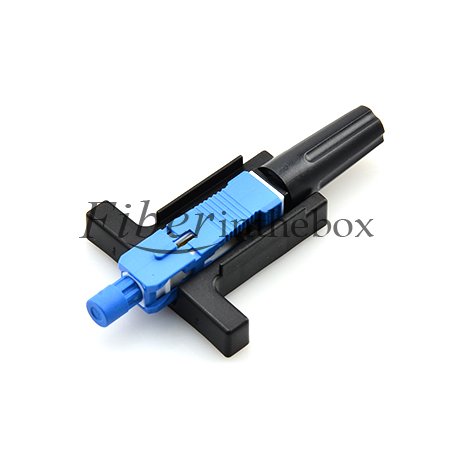

NWC Patented Quick Assembly SC connector

SKU#:FITB64980XDJ
Model#: NWC-Q-SC
Out of stock

The NWC Quick Assembly SC connector can provide a quick and easy termination of fibers in the field.
Both SC single mode and multi mode connector options are available for 900 micron and 3mm drop cable application, allowing the installer to terminate and make connection in 3 minutes in the field.
This connector system doesn't need any requirement such as epoxy, adhesive and costly curing ovens.

Features:

  • Field installable, Cost effective, User friendly
  • No epoxy and polishing required
  • Quick and easy fiber termination in the field
  • Visual indication of proper termination
  • Reliable and superior optical performance

Specification:
Connector Type  SC Type
Inse ion Loss  ( Max 0.5dB)
Reflection  Typical < -40 dB
Tensile Strength
900um 5N
3mm     30N
Connector Durability  < 0.2 dB (After 200 mating)
Operating Temperature  -40℃ ~ +85℃
