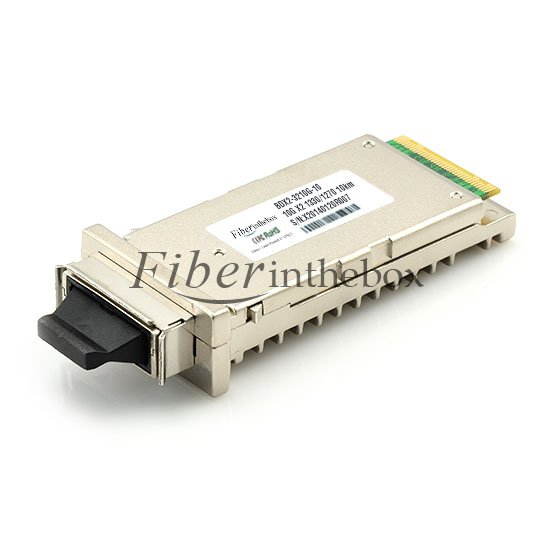

10GB BIDI X2 Simplex SC 1330/1270nm 10km Optical Transceiver
The BiDi X2 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the X2 20-pin connector to allow hot plug capability.
Key Features
10GB BIDI X2 1330/1270nm 10km optical transceiver High Quality with ISO9001, TUV, CE, FCC, UL and RoHS ce ificates Condition: Factory New 1330nm DFB Transmitter/ 1270nm Receiver Distance up to 10km over SMF Average Output Power: -6 ~ -1dBm Receiver Sensitivity:-14dBmSingle 3.3V Power supply and TTL Logic Interface SC Connector Interface Hot PluggableOperating Case Temperature Standard: 0°C~+70°CBuilt-in Digital Diagnostic FunctionCompliant with X2 MSA Specification SFF-8431 Compliant with IEEE 802.3ae 10GBASE-LRCompliant with IEEE 802.3ae 10GBASE-LWCompliant with SFF-8472
Applications
10GBASE-LR at 10.3125Gbps 10GBASE-LW at 9.953Gbps Other Optical Links
Ordering Information
| Pa No. | Data Rate (Gbps) | Wavelength (nm) | TX Power (dBm) | Re Sens. (dBm) | Transmission Distance | Fiber Type | Connector Type | Temp. Range | Digital Diagnostics |
| BSX2-10G23-10-xx | ≤ 10 | 1270/1330nm | -6~-1 | ﹤-14 | 10km | SMF | SC | 0~70℃ | Yes |
| BSX2-10G32-10-xx | ≤ 10 | 1330/1270nm | -6~-1 | ﹤-14 | 10km | SMF | SC | 0~70℃ | Yes |
| BSX2-10G23-20-xx | ≤ 10 | 1270/1330nm | -2~2 | ﹤-15 | 20km | SMF | SC | 0~70℃ | Yes |
| BSX2-10G32-20-xx | ≤ 10 | 1330/1270nm | -2~2 | ﹤-15 | 20km | SMF | SC | 0~70℃ | Yes |
| BSX2-10G23-40-xx | ≤ 10 | 1270/1330nm | 1~5 | ﹤-16.5 | 40km | SMF | SC | 0~70℃ | Yes |
| BSX2-10G32-40-xx | ≤ 10 | 1330/1270nm | 1~5 | ﹤-16.5 | 40km | SMF | SC | 0~70℃ | Yes |
Notes xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply BSX2-10G32-10-xx according to your requirements, and design BSX2-10G32-10-xx label and packaging for your company. We welcome any inquiry for customized 10G X2 optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) or Call (+86-75583003611) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
a. Email ( sales@fiberinthebox.com ) or Call (+86-75583003611) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
Details
Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying BiDi X2 From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of BiDi X2 transceivers. All of our BiDi X2 transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee BiDi X2 transceivers to work in your system and all of our BiDi X2 transceivers come with a lifetime advance replacement warranty. If you have questions about BiDi X2 optics, please feel free to contact us at sales@fiberinthebox.com .
