Description

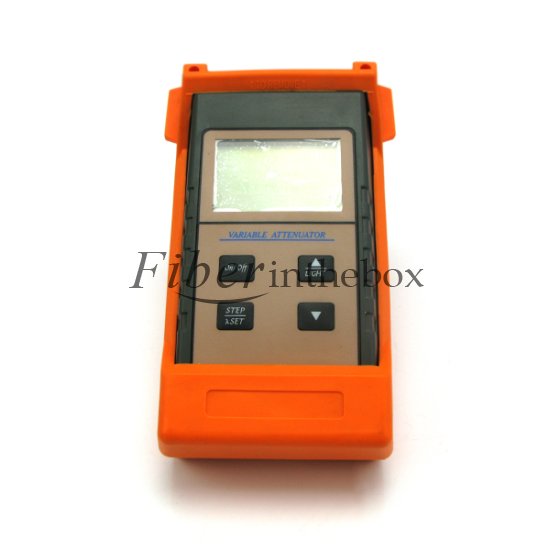

FS1306 series of digital variable optical attenuator is designed by our company according to the developing optical communication and the application of the project. It’s with the small volume, light weight, low power consumption, has the competitive price and capability. This handheld variable attenuator enables consistent operation in various testing situation, such as photoelectric device, optical passive component, optical fiber, optical cable, optical fiber communication, as well as the construction and maintenance of the fiber communication engineering.
Main Functions
0.1dB weaken resolution
Three kind of attenuation step elected 10dB, 1.0dB, 01dB.
Universal interface has three types of adapter: FC /SC / ST. Easy to operate
Small size/ light weight/ high reliability, flexibly switch the wavelength
Battery-powered, convenient field work, omnipotence joint
Backlight at night
Applications
Fiber production and research devices
Fiber Network Testing and Maintenance
Optical Communication Teaching and Test
Specifications
|
Type |
FS1306 |
FS1306B |
|
Wavelength |
1310nm/1550nm |
1310nm/1550nm |
|
Attenuation Range |
0~–60dB (not contain inse loss) |
0~–50dB(not contain inse loss) |
|
Accuracy |
≤±0.1dB |
≤±0.1dB |
|
Resolution |
0.01dB |
|
|
Inse loss |
<1.5dB |
|
|
Echo loss |
>60dB(APC) >50dB(PC) |
|
|
Batteries |
9V alkaline battery |
|
|
Fiber Type |
SM9/125μm |
|
|
Interface Type |
FC(standard), ST/SC are available for use |
|
|
Operating temp |
-10℃ to 60℃ |
|
|
Storage temp |
-20℃ to 70℃ |
|
|
Work humidity |
<95% |
|
|
Automatic shutdown time |
10min |
|
|
Dimension |
14.0×7.8×3.8cm |
|
|
Weight |
200g |
|
Order Information
FS1306 series digital variable optical attenuator, Operating manual, Protective Holster, Maintenance card, Ce ificate, Drying agent, Carrying case
Note: We provide FC, ST, SC Connector for choose. If no special requirement, we will send you the FC connector.
If you need more than one connector, the price would be different, please contact our sales at sales@fiberinthebox.com for more details.
