Description
The Fiber Optic Terminal Box is a kind of optical fiber management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
The FS-48A/ST12 we provide is a kind of high quality, micro sized optical fiberal termination box made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount ST adapter, the box can be installed on the indoor wall and terrace.
The FS-48A/ST12 we provide is a kind of high quality, micro sized optical fiberal termination box made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount ST adapter, the box can be installed on the indoor wall and terrace.
Features and Advantages
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation The box has a pothook, which is convenient to install and dismantle The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray The box is of unique structure, reasonable layout, and has adequate room for operation Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly The indoor type is of excellent seal performance, which could prevent water from entering effectively Be installed with ST adapter Up to 12 cores splice capacity It can be installed on the wall and in the cabinetDimension(mm): 330*183*70
Kind Reminder
This price is for FS-48A/ST12 optical fiber terminal box, not including the adapters and pigtails. If you need them be installed, please contact us for details at sales@fiberinthebox.com , we can make it for you with reasonable price. Thank you!
Applications
Order Information
| Type | Size(mm) | Max capacity(core) | Remark |
| FS/48A-FC12 | 330x183x70 | 12 | The body is made of cold rolled steel sheet,with electrostatic spraying,12 outlets for adaptors |
| FS/48A-SC12 | 330x183x70 | 12 | |
| FS/48A-ST12 | 330x183x70 | 12 | |
| FS/48A-FC24 | 330x183x100 | 24 | |
| FS/48A-24 | 330x183x70 | 24 | The body is made of cold rolled steel sheet with electrostatic spraying,fiber pigtail outlet |
| FS/48A-48 | 330x183x70 | 48 | |
| FS/48A-CQ48 | 330x183x70 | 48 | |
| FS/G-24A | 330x120x46 | 24 |
Packing Information
| Type | Net size | Net weight(kg) | Packing size | Packing weight (kg) | No./ca on |
| (mm) | (mm) | pcs | |||
| FS/48A | 360X193X85 | 1.85 | 430x370x470 | 20 | 10 |
| FS/48A-FC24 | 360X193X115 | 2.05 | 430x370x470 | 18 | 8 |
| FS/G | 320x150x60 | 1.05 | 630x330x340 | 20 | 20 |

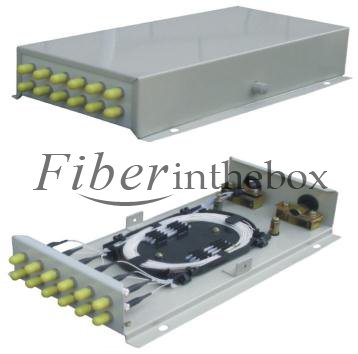

Detailed Picture
