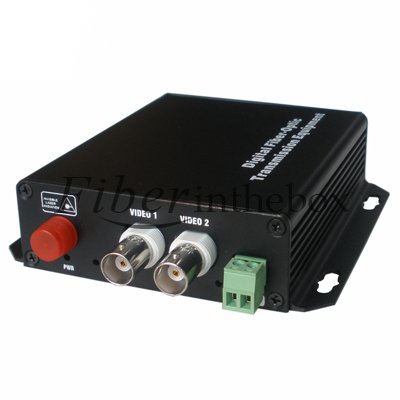

2 Channel Video & 2 Duplex Audio to Fiber Optic Video Multiplexer Transmitter and Receiver SM FC 20km
Descriptions:
Model: FS-2V2Aa-SM-FC-20KM Transmitter + Receiver Fiber Mode: Single-Mode Wavelengths: 1310nm/1550nm Optical Power Budget: 12dB Maximum Transmission Distance: 20km 24-Bit Digitally encoded audio over one fiber Standalone- (Inse card version also available ,which can be inse ed into our 16-slot, 19inch 2U or 4U rack-mountable card cage). Standard Single-Mode 20KM- (Multimode also available, which suppo for distances up to 2.0 km)
Key Features:
Suppo Point-to-Point or Daisy-Chain connection Uncompressed Digital Composite Video over one fiber Compatible with all PAL, NTSC,SECAM Video Systems Single-Mode Fiber Suppo for Distances up to 100 km LED Status Provide Rapid Indication of Operating Parameters No EMI or RFI and no ground loops Suppo Coarse Wavelength Division Multiplexing (CWDM) Stand alone Produce according to customer's specifications,providing OEM
Specifications
| Video | Connectors | ||
| Number of Channels | 2 channel Video | Video | 75Ω BNC (Gold Center Pin) |
| Input/output impedance | BNC 75Ω | Audio | Terminal Block |
| Input/output Compatibility | PAL,NTSC,SECAM | Optical | FC (Standard) |
| Input/output voltage | 1.0 Volt p-p | Standalone power | Screw terminal block |
| Bandwidth | 6.5MHZ | Rack Power | AC line card |
| Bit Resolution | 8-Bit Digital Transmission | Electrical & Mechanical | |
| Differential Gain | < 1.5% | Input Power Requirements | DC 5V@2A |
| Differential Phase | < 1.5° | Power Adapter | AC 100V~240V |
| Tilt | < 5% | Power Consumption | < 3W |
| Signal-to-Noise Ratio(SNR) | > 67 dB | Shipping weight | 1.8kg(include TX & RX) |
| Audio | |||
| Number of Channels | 2 channels duplex audio | ||
| Audio in/output impedance | 600Ω Balanced/Unbalanced | ||
| Audio in/output Level | 6 dBm | ||
| Signal-to-Noise Ratio (SNR) | >80 dB | ||
| Bit Resolution | 24-Bit | ||
| Bandwidth | 10Hz~20KHz | ||
| Environmental | |||
| Operating Temperature | -45°C~+75 °C | Storage Temperature | -45°C~+85 °C |
| Relative Humidity | 0%~95% (non-condensing) | MTBF | >100,000 hours |
