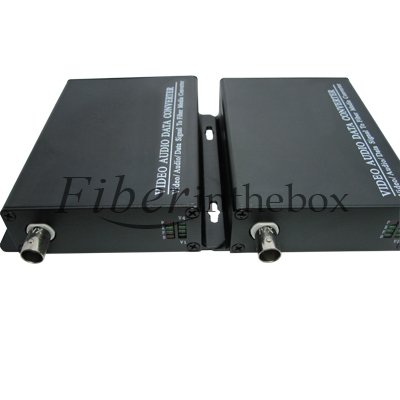

1 Channel Video to Fiber Optical Video Multiplexer Transmitter and Receiver SM FC 20km
Descriptions:
Model: FS-1V-SM-FC-20KM Transmitter + Receiver Fiber Mode: Single-Mode Wavelengths: 1310nm/1550nm Optical Power Budget: 12dB Maximum Transmission Distance: 20km Fiber Optic Video Transmitter & Receiver transmission 1-Channel digital composite video Standalone- (Inse card version also available ,which can be inse ed into our 16-slot, 19inch 2U or 4U rack-mountable card cage). Standard Single-Mode 20KM- (Multimode also available, which suppo for distances up to 2.0 km)
Key Features:
Suppo Point-to-Point or Daisy-Chain connection Uncompressed Digital Composite Video over one fiber Compatible with all PAL, NTSC,SECAM Video Systems Single-Mode Fiber Suppo for Distances up to 100 km LED Status Provide Rapid Indication of Operating Parameters No EMI or RFI and no ground loops Suppo Coarse Wavelength Division Multiplexing (CWDM) Stand alone Produce according to customer's specifications,providing OEM
Specifications
| Video | Connectors | ||
| Number of Channels | 1 channel Video | Video | 75Ω BNC (Gold Center Pin) |
| Input/output impedance | BNC 75Ω | Optical | FC (Standard) |
| Input/output Compatibility | PAL,NTSC,SECAM | Standalone power | Screw terminal block |
| Input/output voltage | 1.0 Volt p-p | Rack Power | AC line card |
| Bandwidth | 6.5MHZ | ||
| Bit Resolution | 8-Bit Digital Transmission | Electrical & Mechanical | |
| Differential Gain | < 1.5% | Input Power Requirements | DC 5V@2A |
| Differential Phase | < 1.5° | Power Adapter | AC 100V~240V |
| Tilt | < 5% | Power Consumption | < 3W |
| Signal-to-Noise Ratio(SNR) | > 67 dB | Shipping weight | 1.2kg(include TX & RX) |
| Environmental | |||
| Operating Temperature | -45 °C~+75 °C | Storage Temperature | -45°C~+85 °C |
| Relative Humidity | 0%~95% (non-condensing) | MTBF | >100,000 hours |
