PLC Splitter is based on planar lightwave circuit technology.
Fiberinthebox 2x4 Fiber PLC Splitter can distribute or combine 2 optical signals into 4 outputs fibers.

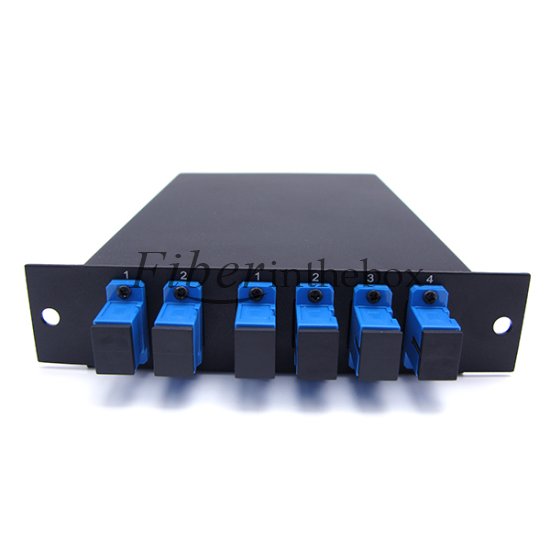

The 2x4 PLC Splitter, with1.5m length G.657A Fiber 0.9mm, 2.0mm, 3.0mm for choice and FC, SC, ST & LC connectors for choice, standard LGX metal box package, features high reliability, small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting
Fiberinthebox 2x4 Fiber PLC Splitter can distribute or combine 2 optical signals into 4 outputs fibers.
The 2x4 PLC Splitter, with1.5m length G.657A Fiber 0.9mm, 2.0mm, 3.0mm for choice and FC, SC, ST & LC connectors for choice, standard LGX metal box package, features high reliability, small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting
LGX Box PLC Splitter Features
Low inse ion loss Low Polarization Dependent Loss Good channel-to-channel uniformity Wide Operating Wavelength: 1260~1650nm High Reliability and Stability Telcordia GR-1209-CORE-2001 Compliant Telcordia GR-1221-CORE-1999 Compliant Standard LGX Metal Box- Durable Package, Protective, Really Suitable for Outdoor Use
LGX Box PLC Splitter Applications
Mechanical Drawing
V.S FBT Coupler, the advantages of PLC are as follows
The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength High spectral uniformity, can splitter the signals on average Compact structure, small volume The cost advantage is very obvious on many splitter channels
Order Information
Fiberinthebox provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 2x2, 2x4, 2x8, 2x16, 2x32 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 0.9, 2.0, 3.0mm loose tube for input & output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.
a.1x2, 1x4, 1x8, 1x16,1x32, 2x2, 2x4, 2x8, 2x16, 2x32 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 0.9, 2.0, 3.0mm loose tube for input & output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.
LGX Box Type Advantage
Fiberinthebox LGX box type PLC Splitter is the best choice to install on the above 4U Rack Chassis, which is widely used in FTTH networks.
The 4U Rack Chassis features Versatile cable management as below:
Glass door-provide a good cover for inside LGX device, protect from dust and damage.
Cable Management Bar, rear (4 hook and Loop Fasteners included)- provides a trough where excess cable can be stored
12 pcs LGX box capacity- benefit for high density center
The 4U Rack Chassis features Versatile cable management as below:
Glass door-provide a good cover for inside LGX device, protect from dust and damage.
Cable Management Bar, rear (4 hook and Loop Fasteners included)- provides a trough where excess cable can be stored
12 pcs LGX box capacity- benefit for high density center
Sample Pictures
Fiberinthebox provides a various of 1xN and 2xN PLC ABS box splitters. The ABS Box PLC Splitter with its compact structure and small volume, are very convenient for use and can be installed in many places, such as: 19 inch racks, cross connect cabinet and some other devices. For more information about 1x2 Fiber PLC Splitter SMF-28e fiber with Plastic ABS Box Package, please contact us at sales@fiberinthebox.com .
Our Factory
Specifications
| 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | ||
| Operating Wavelength (nm) | 1260～1650 | |||||||||||
| Insertion Loss (dB) | Typical | 4.0 | 7.3 | 10.5 | 13.8 | 16.8 | 20.5 | 4.0 | 7.6 | 11.2 | 14.2 | 17.2 |
| Max(P/S) | 4.3/4.5 | 7.5/7.7 | 11.0/11.2 | 14.0/14.2 | 17.0/17.5 | 21.0/21.5 | 4.4/4.7 | 8.0/8.3 | 11.7/12.0 | 14.7/15.0 | 17.9/18.2 | |
| Loss Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1.3 | 0.5 | 1.0 | 1.0 | 1.2 | 1.5 |
| Max | 0.6 | 0.8 | 1.0 | 1.4 | 1.7 | 2.7 | 0.8 | 1.4 | 1.7 | 2.0 | 2.2 | |
| Return Loss (dB) （P/S) | UPC Min | 50/45 | 5./45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 |
| APC Min | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | |
| Polarization Dependent Loss(dB) | Typical | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.2 | 0.1 | 0.1 | 0.2 | 0.3 | 0.3 |
| Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | |
| Directivity (dB) | Min | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 |
| Wavelength Dependent Loss(dB) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.4 | 0.4 | 0.5 | 0.6 | 0.8 | |
| Temperature Stability(-40～85℃ )(dB) | Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40～85 | |||||||||||
| Storage Temperature (℃) | -40～85 | |||||||||||
