1x16 PLC Splitter, G.657A Fiber 0.9mm, 2.0, 3.0mm loose tube fiber for Input & Outside, FC, SC, LC or ST connectors for choice.
1x16 PLC Splitter divides or combines a signal inputs to 16 outputs.
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. PLC splitter are based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiberinthebox PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
Fiberinthebox provides a various of 1xN and 2xN PLC 1U rack mount type splitters, including 1x2, 1x4, 1x8, 1x16,1x32 1U rack mount type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32 1U rack mount type PLC splitters.
1x16 PLC Splitter divides or combines a signal inputs to 16 outputs.
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. PLC splitter are based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiberinthebox PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
Fiberinthebox provides a various of 1xN and 2xN PLC 1U rack mount type splitters, including 1x2, 1x4, 1x8, 1x16,1x32 1U rack mount type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32 1U rack mount type PLC splitters.
1U Rack Mount PLC Splitter Features
Good uniformity and low inse ion loss Low Polarization Dependent Loss Excellent Mechanical Stability Telecordia GR-1221 and GR-1209 Components through TLC-Ce ified,Conform to YD1117-2001 Operating environment: -40ºC to +85ºC High Polarization Extinction Ratio & Excellent UniformityG.657A Fiber
1U Rack Mount PLC Splitter Applications
Mechanical Drawing
This mechanical drawing is 1U rack mount box, only for your reference
Fiberinthebox offer LC, SC, FC or ST adapters for choice. APC or UPC on customer request.

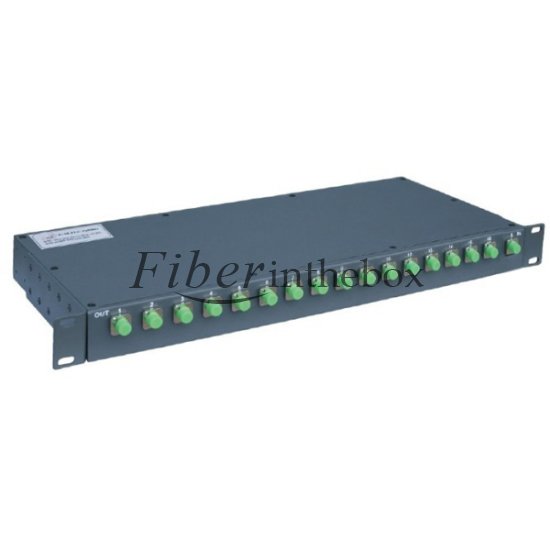

Sample Picture
V.S FBT Coupler, the advantages of PLC are as follows
The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength High spectral uniformity, can splitter the signals on average Compact structure, small volume The cost advantage is very obvious on many splitter channels
Order Information
Fiberinthebox provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 2x2, 2x4, 2x8, 2x16, 2x32 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 0.9, 2.0, 3.0 mm loose tube for input & output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.
a.1x2, 1x4, 1x8, 1x16,1x32, 2x2, 2x4, 2x8, 2x16, 2x32 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 0.9, 2.0, 3.0 mm loose tube for input & output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.
Our Factory
Specifications
| 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | ||
| Operating Wavelength (nm) | 1260～1650 | |||||||||||
| Insertion Loss (dB) | Typical | 4.0 | 7.3 | 10.5 | 13.8 | 16.8 | 20.5 | 4.0 | 7.6 | 11.2 | 14.2 | 17.2 |
| Max(P/S) | 4.3/4.5 | 7.5/7.7 | 11.0/11.2 | 14.0/14.2 | 17.0/17.5 | 21.0/21.5 | 4.4/4.7 | 8.0/8.3 | 11.7/12.0 | 14.7/15.0 | 17.9/18.2 | |
| Loss Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1.3 | 0.5 | 1.0 | 1.0 | 1.2 | 1.5 |
| Max | 0.6 | 0.8 | 1.0 | 1.4 | 1.7 | 2.7 | 0.8 | 1.4 | 1.7 | 2.0 | 2.2 | |
| Return Loss (dB) （P/S) | UPC Min | 50/45 | 5./45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 |
| APC Min | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | |
| Polarization Dependent Loss(dB) | Typical | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.2 | 0.1 | 0.1 | 0.2 | 0.3 | 0.3 |
| Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | |
| Directivity (dB) | Min | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 |
| Wavelength Dependent Loss(dB) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.4 | 0.4 | 0.5 | 0.6 | 0.8 | |
| Temperature Stability(-40～85℃ )(dB) | Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40～85 | |||||||||||
| Storage Temperature (℃) | -40～85 | |||||||||||
