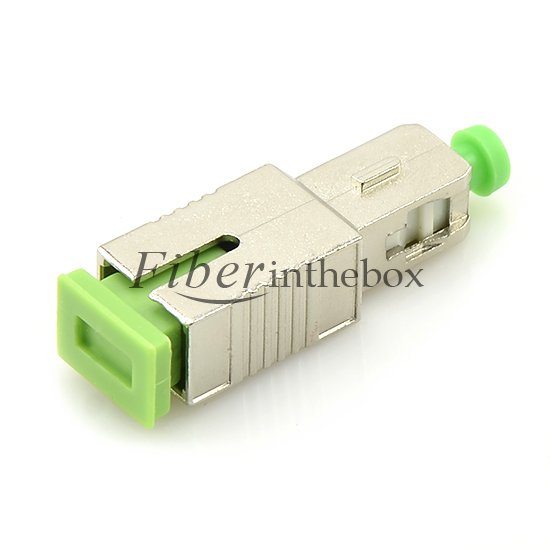

Fixed Male-Female-SC/APC Fiber Optic Attenuator 1~30dB optional
Fixed Attenuators are used in applications where a pre-determined amount of light loss is specified.
We offer LC,FC,SC,ST,MU fixed attenuator with different attenuation level, from 1dB to 30dB.
We offer LC,FC,SC,ST,MU fixed attenuator with different attenuation level, from 1dB to 30dB.
Key Features
Bellcore Compliant Wavelength Independent Durability & Simple and Reliable Structure
Specifications
Operating Wavelength: SM: 1310nm, 1550nm MM: 850nm, 1300nm Return loss:Less than 65dB (APC) Attenuation Accuracy: +/-0.5 (1~10) +/-1.0(11~30) Polarization Dependent Loss: Less than 0.2dB Max. Optical Input Power: 200mW Operating Temp Range: -40~80°C
