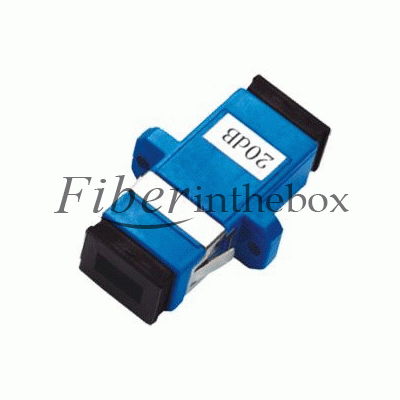

Fixed Flange SC/UPC Fiber Optic Attenuator 1~25dB optional
Fixed Attenuators are used in applications where a pre-determined amount of light loss is specified.
We offer LC,FC,SC,ST,MU fixed attenuator with different attenuation level, from 1dB to 25dB.
We offer LC,FC,SC,ST,MU fixed attenuator with different attenuation level, from 1dB to 25dB.
Key Features
Bellcore Compliant Wavelength Independent Durability & Simple and Reliable Structure
Specifications
Operating Wavelength: SM: 1310nm, 1550nm MM: 850nm, 1300nm Return loss:Less than 55dB (UPC) Attenuation Accuracy: +/-0.5 (1~10) +/-1.0(11~30) Polarization Dependent Loss: Less than 0.2dB Max. Optical Input Power: 200mW Operating Temp Range: -40~80°C
