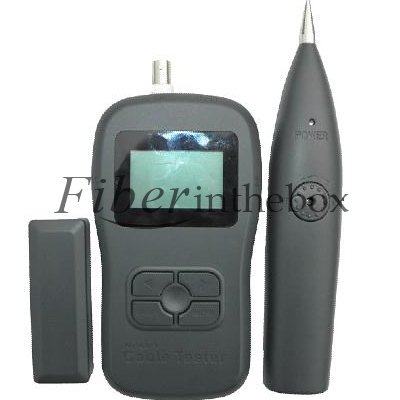

Shom Cable Tester Scanner Meter SML-WD68
Key Features
The tester will shut off automatically to save battery if not work for 15 minutes To judge connect-and-break situation, it can judge the connection status ok or not while the cable is connected with the router, even you can test the telephone line while it works with electricity To check connection status, It provide two ways of M-S and M-R for you to select and test the circuit status of open/sho /crosstalk/Reverse/match, and judge the break point along cable, the result information shows in LCD To judge opening point, It can help to focus on the exact point if there is a open circuit among the crystal po of network cable To check crosstalk situation, to check and judge the crosstalk situation in network cable, and help to resolve the latent network issue of slow speed To scan and find the wanted cable, Cable-scanning sensor is with a high sensitivity and strong anti-jamming ability,which make the tester to recognise the wish cable in numerous cables by adjusting the switch and volume, and even it can works while the cable is connected with the working switchboard, the hunting length may amount to 3000 metersTo measure the cable length, M-S, M-R, or Open 3 ways are provided to measure the length of cables up to 1,200 meter. The accuracy of measuring length for the break point is about 98%
Specifications
Package dimension: 220mmx170mmx55mm Display screen: Lattice:128x64(ˆvalid screen 48x32mm) Power supply: 4 piece of AA battery of 1.5V Testing po : in mainframe:RJ45 “M”main po ,RJ45“S”return po , RJ11“M”po ,BNC "M" male po ; in receiver: RJ45“R”distance po ,RJ11“R” distance po Working environment: -10℃------+60℃
Order Information
mainframe long-distance testing meter cable-scanning sensorcloth tool bagalligator clip adapterfour piece of AA battery of 1.5V
Application
RJ45 network cable,RJ11 telephone line, BNC coaxial cable It can test or scan other type of cable via alligator adapter
Specifications
Package dimension: 220mmx170mmx55mm Display screen: Lattice:128x64(ˆvalid screen 48x32mm) Power supply: 4 piece of AA battery of 1.5V Testing port: in mainframe:RJ45 “M”main port,RJ45“S”return port, RJ11“M”port,BNC "M" male port; in receiver: RJ45“R”distance port,RJ11“R” distance port Working environment: -10℃------+60℃
