Introduction

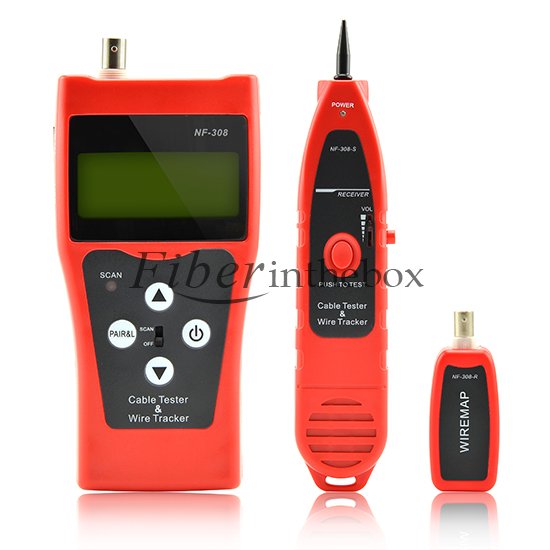

NF-308 multipurpose network cable test & inspection instrument is the latest cable test & inspection instrument with lots of new functions researched and developed by our company. The equipment is composed of tester (NF-308), receiver (NF-838-R) and remote identifier. The new instrument is provided with fluent appearance, excellent hand feel and considerate human-centered design. It owns three great functions of hunting, wire so ing and circuit status testing and the features of quickness and accuracy, thus, it becomes available tool for technicians in installation and maintenance of weak current system, such as, communication lines, comprehensive wiring circuit, etc. It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.
Features
One person enough to complete cable continuity check.
Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
Check wiring error in 5E, 6E, telephone line, coaxial cable, USB cable and such as open circuit, sho circuit, jumper wire, reverse connection or cross-talk interference.
Locate the wiring or connection error.
Measure cable length and determine the distance of open circuit and sho circuit.
Dynamically calibrate cable length and make length measurement as accurate as 97%.
Simple and easy use. Big screen to display test result clear.
Po able unit with long battery life (wait-case 50 hours).
Automatically time-delay shut off and backlight display function.
Measure length and pair with or without far-end recognizer.
Locate cable and there are 1 far-end passive test jacksbr /> Far-end recognizer with prompting voice.
Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
Single board computer software watchdog design and reliable operation.
Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
Check wiring error in 5E, 6E, telephone line, coaxial cable, USB cable and such as open circuit, sho circuit, jumper wire, reverse connection or cross-talk interference.
Locate the wiring or connection error.
Measure cable length and determine the distance of open circuit and sho circuit.
Dynamically calibrate cable length and make length measurement as accurate as 97%.
Simple and easy use. Big screen to display test result clear.
Po able unit with long battery life (wait-case 50 hours).
Automatically time-delay shut off and backlight display function.
Measure length and pair with or without far-end recognizer.
Locate cable and there are 1 far-end passive test jacksbr /> Far-end recognizer with prompting voice.
Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
Single board computer software watchdog design and reliable operation.
Specification
Overall dimension: Main tester: 185×105×50mm; receiver: 218×46×29mm;Remote identifier: 84×34×27mm.
Power: Two laminated batteries of 9V.
Display: Special 4 x 16 character big screen LCD lattice(valid visual field 61.6 x 25.2 mm).
Type of cable tested: STP/UTP twin twisted cable, coaxial cable, telephone line.
Type of cable detected: 5E, 6E, telephone wire, coaxial cable, USB cable and other metal wires.
Ambient temperature in work: -10℃~+60℃
Tester Po : Tester RJ45 master po (M), tester LOOPBACK RJ45 po (L), hunting RJ45 po (With RJ45); Remote identifier RJ45 po (R) The extra BNC and RJ11 conve ers are used to measure and check the continuity of coaxial cable and telephone line.
Length Measurement of Twin Twisted Cable: Scope: 1~350 M ( 3 ~200 ft); Calibration accuracy: 3% (+/- 0.5M or +/- 1.5 ft)(calibrating cable > 5 M); Shipment accuracy: 5% (+/- 0.5 M or +/- 1.5 ft).(AMP, AT&T Class 5 cable); Display: M or ft.
Length Calibration: User can set calibration factor by himself with a given length cable. The length of calibrating cable is more than 5 M.
Wire Sequence and Locating Cable Error: Check errors such as open circuit, sho circuit, reverse connection, cross-over or cross-talk interference.
Locating Cable: 1 Remote identifier test jacks.
Automatic Time-delay Shut Off Time: The tester does not operate for 30 minutes.
Power: Two laminated batteries of 9V.
Display: Special 4 x 16 character big screen LCD lattice(valid visual field 61.6 x 25.2 mm).
Type of cable tested: STP/UTP twin twisted cable, coaxial cable, telephone line.
Type of cable detected: 5E, 6E, telephone wire, coaxial cable, USB cable and other metal wires.
Ambient temperature in work: -10℃~+60℃
Tester Po : Tester RJ45 master po (M), tester LOOPBACK RJ45 po (L), hunting RJ45 po (With RJ45); Remote identifier RJ45 po (R) The extra BNC and RJ11 conve ers are used to measure and check the continuity of coaxial cable and telephone line.
Length Measurement of Twin Twisted Cable: Scope: 1~350 M ( 3 ~200 ft); Calibration accuracy: 3% (+/- 0.5M or +/- 1.5 ft)(calibrating cable > 5 M); Shipment accuracy: 5% (+/- 0.5 M or +/- 1.5 ft).(AMP, AT&T Class 5 cable); Display: M or ft.
Length Calibration: User can set calibration factor by himself with a given length cable. The length of calibrating cable is more than 5 M.
Wire Sequence and Locating Cable Error: Check errors such as open circuit, sho circuit, reverse connection, cross-over or cross-talk interference.
Locating Cable: 1 Remote identifier test jacks.
Automatic Time-delay Shut Off Time: The tester does not operate for 30 minutes.
Package Including
A Set Of NoyafaNF-308
A Set Of Cable
One Soft Bag
One Earphone
A Set Of Cable
One Soft Bag
One Earphone
Generally speaking, a network cable tester is a device that test for different types of faults in cables like continuity, dislocation, open circuit, sho circuit, cable pairing faults, or indications like shielding indication, straight cable/ cross over cable indication, etc. We Fiberinthebox.com provide various types of this product, from basic to complicated, and all of high quality and good price. If you need this Cable Tester & Wire Tracker NF-308 in a large quantity, we will provide you a special discount.
