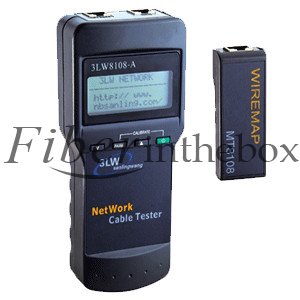

CAT5 RJ45 Network Cable Tester Meter 3LW8108-A
Key Features
One person enough to complete cable continuity check Checks wiring error in 5E, 6E, coaxial and telephone line Such as open circuit, sho circuit, jumper wire, reverse connection or cross-talk interference Locates the wiring or connection error Measures cable length and determines the distance of open circuit and sho circuit Dynamically calibrates cable length and makes length measurement as accurate as 97%Simple and easy use, big screen to display test clearPo able unit with long battery life (wait-case 50 hours)Automatically time-delay shut offMeasures length and pair with or without far-end recognizerLocates cable and there are 8 far-end passive test jacks (ID no.: ID1 - ID 8)Far-end recognize with prompting voice Self-checking function and automatically compensates any change in battery capacity or ambient temperatureSingle board computer software watchdog design and reliable operating
Specifications
LCD : 4 x 16 characters big screen (valid visual field 61.6 x 25.2 mm) Type of Tester Cable : STP / UTP twin twisted cable, coaxial cable, telephone line Tester Po : Tester RJ45 master po (M), tester LOOPBACK RJ45 po (L), far-end recognizer RJ45 po (R).The extra BNC and RJ11 conve ers are used to measure and check the continuity of coaxial cable and telephone line Length Measurement of Twin Twisted Cable:Scope : 1350M (31,200 FT);Calibration accuracy : 3% (± 0.5m or ± 1.5 ft) (calibrating cable > 5 M);Shipment accuracy : 5% (± 0.5m or ± 1.5 ft) (AMP, AT&T Class 5 cable);Display : M or FT Length Calibration : User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than 5MWire Sequence and Locating Cable Error : Check errors such as open circuit, sho circuit, reverse connection, cross over or cross-talk interferenceLocating Cable : Included 1 far-end passive test jackWorking Ambient Temperature : -10°C to 60°CUse 4 x AA batteries (Not included)Item size : 180 x 80 x 40 mm
Order Information
1X3LW8108-A 1XFar End Jack
Generally speaking, a network cable tester is a device that test for different types of faults in cables like continuity, dislocation, open circuit, sho circuit, cable pairing faults, or indications like shielding indication, straight cable/ cross over cable indication, etc. We Fiberinthebox.com provide various types of this product, from basic to complicated, and all of high quality and good price. If you need this CAT5 RJ45 Network Cable Tester Meter 3LW8108-A in a large quantity, we will provide you a special discount.
Specifications
LCD : 4 x 16 characters big screen (valid visual field 61.6 x 25.2 mm) Type of Tester Cable : STP / UTP twin twisted cable, coaxial cable, telephone line Tester Port : Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R).The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line Length Measurement of Twin Twisted Cable:Scope : 1350M (31,200 FT);Calibration accuracy : 3% (± 0.5m or ± 1.5 ft) (calibrating cable > 5 M);Shipment accuracy : 5% (± 0.5m or ± 1.5 ft) (AMP, AT&T Class 5 cable);Display : M or FT Length Calibration : User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than 5MWire Sequence and Locating Cable Error : Check errors such as open circuit, short circuit, reverse connection, cross over or cross-talk interferenceLocating Cable : Included 1 far-end passive test jackWorking Ambient Temperature : -10°C to 60°CUse 4 x AA batteries (Not included)Item size : 180 x 80 x 40 mm
