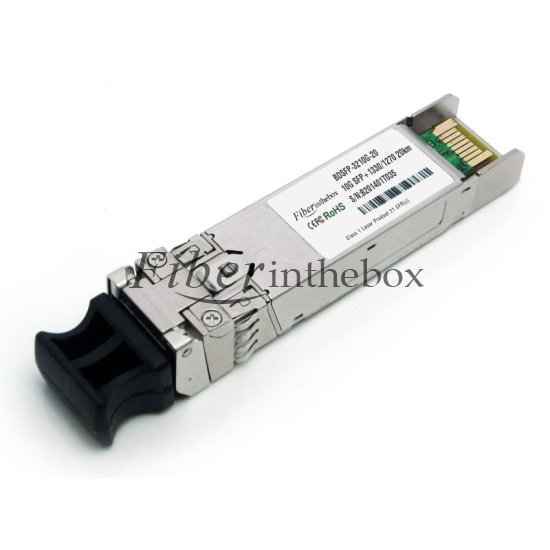

BLSFP-10G32-20-xx
The 10G SFP+ BIDI series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The BLSFP-10G23-20-xx module is designed for single mode fiber and operates at a nominal wavelength of 1270nm; the BLSFP-10G23-20-xx module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Key Features
Operating data rate up to 10.3Gbps1330nm DFB Transmitter/ 1270nm ReceiverPower budget 12dBSingle 3.3V Power supply and TTL Logic InterfaceLC Connector InterfaceHot PluggablePower Dissipation < 1.5WOperating case temperatureStandard : 0°C to +70°CAverage Output Power:-2~3dBmReceiver Sensitivity:-14dBm Compliant with SFP+ MSA Specification SFF-8431Compliant with IEEE 802.3ae 10GBASE-LRCompliant with IEEE 802.3ae 10GBASE-LWBuilt-in Digital Diagnostic Function
Applications
10GBASE-LR at 10.3125Gbps10GBASE-LW at 9.953GbpsOther Optical Links
Ordering Information
| Pa No. | Data Rate (Gbps) | Wavelength (nm) | TX Power (dBm) | Re Sens. (dBm) | Transmission Distance | Fiber Type | Connector Type | Temp. Range | Digital Diagnostics |
| BLSFP-10G23-10-xx | ≤ 10 | 1270/1330 | -5~0 | ﹤-14 | 10km | SMF | LC | Com. | Yes |
| BLSFP-10G32-10-xx | ≤ 10 | 1330/1270 | -5~0 | ﹤-14 | 10km | SMF | LC | Com. | Yes |
| BLSFP-10G23-20-xx | ≤ 10 | 1270/1330 | -2~3 | ﹤-14 | 20km | SMF | LC | Com. | Yes |
| BLSFP-10G32-20-xx | ≤ 10 | 1330/1270 | -2~3 | ﹤-14 | 20km | SMF | LC | Com. | Yes |
| BLSFP-10G23-40-xx | ≤ 10 | 1270/1330 | 1~5 | ﹤-15 | 40km | SMF | LC | Com. | Yes |
| BLSFP-10G32-40-xx | ≤ 10 | 1330/1270 | 1~5 | ﹤-15 | 40km | SMF | LC | Com. | Yes |
| BLSFP-10G23-60-xx | ≤ 10 | 1270/1330 | 1~6 | ﹤-20 | 60km | SMF | LC | Com. | Yes |
| BLSFP-10G32-60-xx | ≤ 10 | 1330/1270 | 1~6 | ﹤-20 | 60km | SMF | LC | Com. | Yes |
Notes xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc. The two characters are sho for compatible brand.)
Test Repo
Packaging
Antistatic bag Packed on pallets in a box(Default Customer Options) Specific Labels as Request Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply BLSFP-10G32-20-xx according to your requirements, and design BLSFP-10G32-20-xx label and packaging for your company. We welcome any inquiry for customized 10G SFP+ BIDI optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
Details
Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying 10G SFP+ BIDI From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer & supplier of 10G SFP+ BIDI transceivers. All of our 10G SFP+ BIDI transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 10G SFP+ BIDI transceivers to work in your system and all of our 10G SFP+ BIDI transceivers come with a lifetime advance replacement warranty. If you have questions about 10G SFP+ BIDI optics, please feel free to contact us at sales@fiberinthebox.com . If you have questions about 10G SFP+ BIDI optics, please feel free to contact us at sales@fiberinthebox.com .
