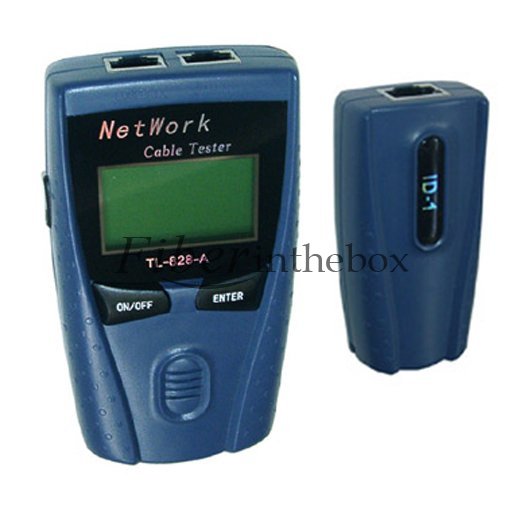

TL-828-A Multifunction Network Cable and Phone Line Tester
It is a tool to test the cat.5e, cat6e, UTP, STP cable and the coaxial cable as well as the telephone wire, tec. It can also test the the situations like the breaking at the set point, the sho circuits, the Gross pair wire, and the split pairs as well the reversed pair wire,etc.
Key Features
Check and verify the mapping table of the wire connection. In the calibration mode, the unit of length can be conve ed from "M" into "FEET". The coefficient after the calibration can be saved, to be modified until the calibration next time. Display the connection on both ends. If the button is not being used within 10 minutes, it will automatically shut off. One Person enough complete cable continuity check.
Specifications
Overall dimension: 125x70x25mm Power supply: 4x1.5V size AA batteries with power consumption 16 ma Display : Special 40x25mm character screen LCD lattice Type of tester cable : STP/UTP twin twisted cable,coaxial cable,telephone line Working Ambient Temperature:-10°C -- +60°C Length Calibration: User can set Calibration factor by himself with a given length cable. The length of calibrating cable is more than 5M.
Package Including
1 x Multiple-function Computer Network cable Tester 1 x Distant Adapter & Commutator 2 x Telephone Cable Commutators 2 x RJ45 to RJ11 Jumper 4 x LR03 AAA.1.5V Batteries2 x Chains 1 x User Manual
.jpg)
Generally speaking, a network cable tester is a device that test for different types of faults in cables like continuity, dislocation, open circuit, sho circuit, cable pairing faults, or indications like shielding indication, straight cable/ cross over cable indication, etc. We Fiberinthebox.com provide various types of this product, from basic to complicated, and all of high quality and good price. If you need this TL-828-A Multifunction Network Fiber Cable and Phone Line Tester in a large quantity, we will provide you a special discount.
Specifications
Overall dimension: 125x70x25mm Power supply: 4x1.5V size AA batteries with power consumption 16 ma Display : Special 40x25mm character screen LCD lattice Type of tester cable : STP/UTP twin twisted cable,coaxial cable,telephone line Working Ambient Temperature:-10°C -- +60°C Length Calibration: User can set Calibration factor by himself with a given length cable. The length of calibrating cable is more than 5M.
