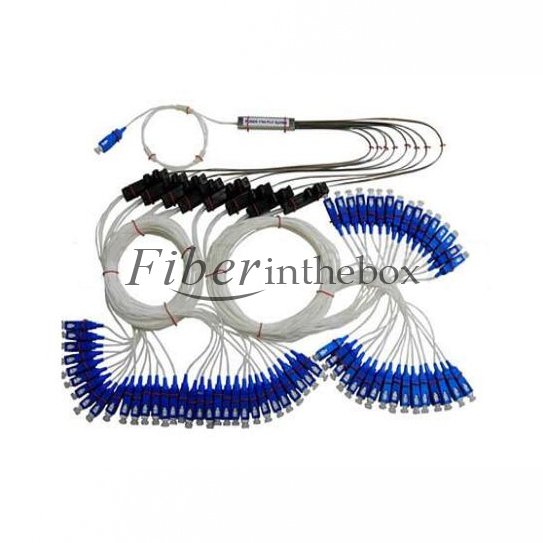

1x64 PLC Splitter,G.657A Fiber 0.9mm loose tube fiber for Input & Outside, FC, SC, LC or ST connectors for choice.
1x64 PLC Splitter divides or combines a signal inputs to 64 outputs.
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiberinthebox PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
PLC splitter with fan-out is mainly used for 0.9mm optical fiber where the ribbon fiber can conve ed to 0.9mm optical fiber through fan-out, Fiber adapters can be provided both for the input and out put ends of this kind of splitters so that they can be used directly to meet the low demand on the size of the splitter, for instance all kinds of precision splitter inse ion box and splitter wall-mounted cabinets.
Fiberinthebox provides a various of 1xN and 2xN PLC fanout splitters, including including 1x2, 1x4, 1x8, 1x16,1x32, 1x64, 1x128 with fanout type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64, 2x128 with fanout type PLC splitters.
1x64 PLC Splitter divides or combines a signal inputs to 64 outputs.
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiberinthebox PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
PLC splitter with fan-out is mainly used for 0.9mm optical fiber where the ribbon fiber can conve ed to 0.9mm optical fiber through fan-out, Fiber adapters can be provided both for the input and out put ends of this kind of splitters so that they can be used directly to meet the low demand on the size of the splitter, for instance all kinds of precision splitter inse ion box and splitter wall-mounted cabinets.
Fiberinthebox provides a various of 1xN and 2xN PLC fanout splitters, including including 1x2, 1x4, 1x8, 1x16,1x32, 1x64, 1x128 with fanout type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64, 2x128 with fanout type PLC splitters.
Fanout PLC Splitter Features
Come with Fan-out kitsGood uniformity and low inse ion loss Low Polarization Dependent Loss Excellent Mechanical Stability Telecordia GR-1221 and GR-1209 Components through TLC-Ce ified,Conform to YD1117-2001 Operating environment: -40ºC to +85ºC High Polarization Extinction Ratio & Excellent Uniformity Fiber input: 0.9mm loose tube Fiber output: 0.9 mm loose tube fiberG.657A Fiber
Fanout PLC Splitter Applications
Packaging
(Shipping fee is calculated by volume weight)
A.Standalone ca on box
B.Economical packing -- One ca on box contains several items
B.Economical packing -- One ca on box contains several items
 |
 |
| A | B |
Mechanical Drawing
V.S FBT Coupler, the advantages of PLC are as follows
The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength High spectral uniformity, can splitter the signals on average Compact structure, small volume The cost advantage is very obvious on many splitter channels
Order Information
Fiberinthebox provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 1x128, 2x2, 2x4, 2x8, 2x16, 2x32,2x64, 2x128 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 0.9mm loose tube for input & output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 1x128, 2x2, 2x4, 2x8, 2x16, 2x32,2x64, 2x128 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 0.9mm loose tube for input & output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.
Our Factory
Specifications
| 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | ||
| Operating Wavelength (nm) | 1260～1650 | |||||||||||
| Insertion Loss (dB) | Typical | 4.0 | 7.3 | 10.5 | 13.8 | 16.8 | 20.5 | 4.0 | 7.6 | 11.2 | 14.2 | 17.2 |
| Max(P/S) | 4.3/4.5 | 7.5/7.7 | 11.0/11.2 | 14.0/14.2 | 17.0/17.5 | 21.0/21.5 | 4.4/4.7 | 8.0/8.3 | 11.7/12.0 | 14.7/15.0 | 17.9/18.2 | |
| Loss Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1.3 | 0.5 | 1.0 | 1.0 | 1.2 | 1.5 |
| Max | 0.6 | 0.8 | 1.0 | 1.4 | 1.7 | 2.7 | 0.8 | 1.4 | 1.7 | 2.0 | 2.2 | |
| Return Loss (dB) （P/S) | UPC Min | 50/45 | 5./45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 | 50/45 |
| APC Min | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | |
| Polarization Dependent Loss(dB) | Typical | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.2 | 0.1 | 0.1 | 0.2 | 0.3 | 0.3 |
| Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | |
| Directivity (dB) | Min | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 |
| Wavelength Dependent Loss(dB) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.4 | 0.4 | 0.5 | 0.6 | 0.8 | |
| Temperature Stability(-40～85℃ )(dB) | Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40～85 | |||||||||||
| Storage Temperature (℃) | -40～85 | |||||||||||
