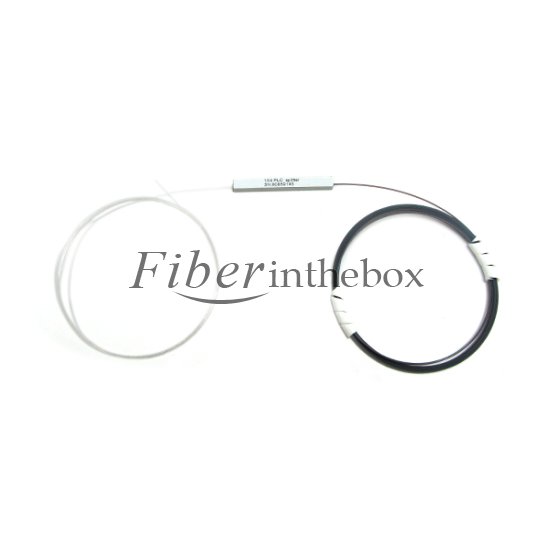

1x4 PLC Splitter, G.657A Fiber 250um bare fiber or 0.9mm loose tube fiber for input, 250um bare fiber for outside, FC, SC, LC or ST connectors for choice.
1x4 PLC Splitter divides or combines a signal input to 4 outputs.
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiberinthebox PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
The bare PLC splitters are used for small spaces that can be easily placed in a formal joint boxes and splice closure. In order to facilitate welding, it does not need specially designed for space reserved.
Fiberinthebox provides a various of 1xN and 2xN PLC bare splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 bare fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32 bare fiber type PLC splitters.
1x4 PLC Splitter divides or combines a signal input to 4 outputs.
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiberinthebox PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
The bare PLC splitters are used for small spaces that can be easily placed in a formal joint boxes and splice closure. In order to facilitate welding, it does not need specially designed for space reserved.
Fiberinthebox provides a various of 1xN and 2xN PLC bare splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 bare fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32 bare fiber type PLC splitters.
Bare Fiber Type PLC Splitter Features
Good uniformity and low inse ion loss Low Polarization Dependent Loss Excellent Mechanical Stability Telecordia GR-1221 and GR-1209 Components through TLC-Ce ified,Conform to YD1117-2001 Operating environment: -40ºC to +85ºC High Polarization Extinction Ratio & Excellent Uniformity Fiber input: 0.9um loose tube or 250um bare fiber for choice Fiber output: 250um bare fiber (It is benefit for splicing)G.657A Fiber
Bare Fiber Type PLC Splitter Applications
Packaging
Transparent plastic box as default
Mechanical Drawing
.jpg)
Kind note: This price is without connector
V.S FBT Coupler, the advantages of PLC are as follows
The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength High spectral uniformity, can splitter the signals on average Compact structure, small volume The cost advantage is very obvious on many splitter channels
Order Information
Fiberinthebox provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 250um bare fiber or 0.9 mm loose tube can be choose as input fiber type, 250um bare fiber for output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like
c. 250um bare fiber or 0.9 mm loose tube can be choose as input fiber type, 250um bare fiber for output fiber type.
d. The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.
Sample Pictures
Our Factory
Specifications
| 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | ||
| Operating Wavelength (nm) | 1260～1650 | |||||||||||
| Insertion Loss (dB) | Typical | 3.6 | 7.0 | 10.0 | 13.3 | 16.3 | 20.0 | 3.7 | 7.0 | 10.8 | 13.6 | 16.8 |
| Max(P/S) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 3.9/4.2 | 7.5/7.8 | 11.2/11.5 | 14.2/14.5 | 17.4/17.7 | |
| Loss Uniformity (dB) | Typical | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.2 | 0.5 | 1.0 | 1.0 | 1.2 | 1.5 |
| Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | 0.6 | 1.2 | 1.5 | 1.8 | 2.0 | |
| Return Loss (dB) （P/S) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | |
| Polarization Dependent Loss(dB) | Typical | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.2 | 0.1 | 0.1 | 0.2 | 0.3 | 0.3 |
| Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | |
| Directivity (dB) | Min | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 | 55.0 |
| Wavelength Dependent Loss(dB) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.4 | 0.4 | 0.5 | 0.6 | 0.8 | |
| Temperature Stability(-40～85℃ )(dB) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 |
| Max | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40～85 | |||||||||||
| Storage Temperature (℃) | -40～85 | |||||||||||
