Description

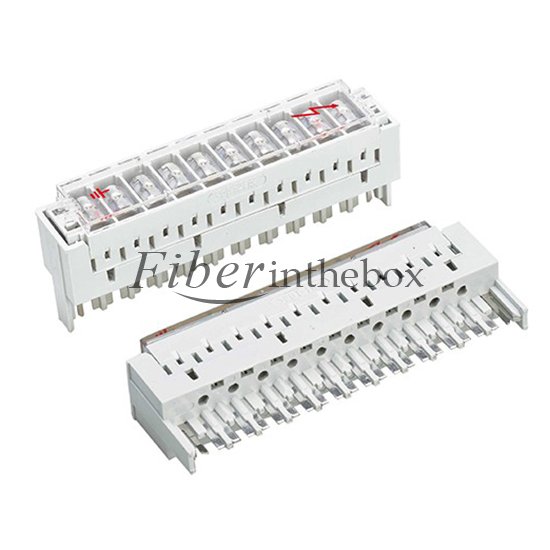

Protection Magazine is mainly used for conve er surge arrester protectionIt is an effective apparatus for prevention of overvoltage and over current caused by the influence of the thunder and lighting over cable or circuit, or caused by the electric wires induction and sho circuit.
Protector Magazine is widely applied in all kinds of distribution case and distribution frame, that adopt 10 pairs disconnection module.
Damage prevention caused by the thunder lighting and electric wires induction, self recovery without the maintenance or replacement.
Specifications
|
Product Name |
Protection Magazine w Surge Arrester |
|
Surge Arrester Type |
3 Poles |
|
Terminals |
10 Pairs |
|
DC Breakdown Voltage |
230V (100V/s) |
|
Impulse breakdown voltage |
≤ 800V(1kV/μ S) |
|
Impulse discharge current |
10kA (8/20μ S) |
|
AC discharge current |
10A (220V AC) |
|
Insulation resistance |
≥ 100MΩ (100V DC) |
|
Insulation protection performance |
≤ 10s(2A 220V) |
|
Size |
112 x 22 x 43mm/ 4.4" x 0.87" x 1.7" (L*T*H) |
|
Material |
Plastic, Metal |
|
Color |
Off White |
|
Weight |
78g |
|
Package |
1 x Protection Magazine w 3 Pole Surge Arrester |
