Introduction

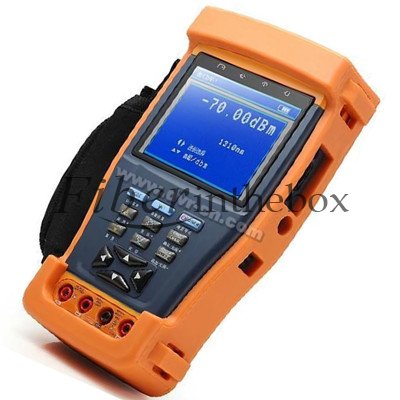

The CCTV testerPRO STest-896 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, testing video level, controlling PTZ, scanning PTZ address, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and po ability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.
Features
3.5"TFT-LCD , 960(H)×240(V)resolution.
DC12V 1A power supply for camera.
Audio input testing.
PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, ape ure and sets and calls the preset position
PTZ continuing rotate test
Video displaying. Automatically adapts and displays the video format of NTSC/PAL. LCD Brightness/ Contrast/ Color Saturation are adjustable.
Video Level testing, video signals measured in IRE or mV
Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven system colorful imagines)
Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem.
Cable testing. It is powerful in testing LAN cable, measuring the connecting status ,displaying the sequence of connection and the NO. of the LAN cable.
Multi-interface and Multi-baudrate. Suppo RS232 ,RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps.
Multi-protocol. Suppo s more than twenty PTZ protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.
PTZ address scanning, search up the ID of PTZ camera.
Lithium Ion Polymer Battery (3.7V DC3000mAh). The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 12 hours for normal use after charging for 4.5 hours.
DC12V 1A power supply for camera.
Audio input testing.
PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, ape ure and sets and calls the preset position
PTZ continuing rotate test
Video displaying. Automatically adapts and displays the video format of NTSC/PAL. LCD Brightness/ Contrast/ Color Saturation are adjustable.
Video Level testing, video signals measured in IRE or mV
Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven system colorful imagines)
Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem.
Cable testing. It is powerful in testing LAN cable, measuring the connecting status ,displaying the sequence of connection and the NO. of the LAN cable.
Multi-interface and Multi-baudrate. Suppo RS232 ,RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps.
Multi-protocol. Suppo s more than twenty PTZ protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.
PTZ address scanning, search up the ID of PTZ camera.
Lithium Ion Polymer Battery (3.7V DC3000mAh). The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 12 hours for normal use after charging for 4.5 hours.
Application
CCTV system installation and maintenance
Dome camera and All in one camera testing
The CCTV transmitting channel testing
PTZ controller
Dome camera and All in one camera testing
The CCTV transmitting channel testing
PTZ controller
Family Comparison
| STest-890 | 2.8"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL color bar generator, PTZ controller, UTP cable tester, PTZ data analyst, PTZ address scanning, Lithium Ion Polymer Battery suppo 11 hours working time. |
| STest-891 | 2.8"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL color bar generator, PTZ controller, UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Lithium Ion Polymer Battery suppo 15 hours working time. |
| STest-893 | 3.5"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL colorbar generator, PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Lithium Ion Polymer Battery suppo 12 hours working time. |
| Stest-894 | 3.5"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL colorbar generator, PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Digital multimeter, Lithium Ion Polymer Battery suppo 12 hours working time. |
| STest-895 | 3.5"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL colorbar generator, PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Digital multimeter, Optical power meter, Lithium Ion Polymer Battery suppo 12 hours working time. |
| STest-896 |
3.5"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL color bar generator, PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Optical power meter, Lithium Ion Polymer Battery suppo 12 hours working time. |
Specifications
| Model | CCTV Security Tester 896 |
| Video Test | |
| Signal mode | NTSC/PAL (Auto adapt) |
| Display | 3.5 inch digital TFT-LCD ,960 x 240 resolution |
| LCD adjustment | Brightness, Contrast, Saturation adjustable |
| Video IN/OUT | 1 channel BNC Input & 1 channel Output |
| Video Output Mode | 1.0 Vp-p |
| Video Level test | Video signals measured in IRE or mV |
| Power Output | |
| Power Output | DC12V, 1A |
| Audio Test | |
| Audio input | 1 channel Audio input |
| PTZ controller | |
| Communication | RS232, RS422 simplex and RS485 |
| PTZ Protocol | Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
| Baud Rate | 150,300,600,1200,2400,4800,9600,19200bps |
| Video Signal Generation | |
| Color bar generation | Output channel colorbar video signal for testing monitor or video cable |
| UTP CABLE TEST | |
| UTP cable test | Test UTP cable connection status and display in the screen. Read the number of the test box. |
| RS485 data analyst | |
| Data Monitor | Captures and analyzes the command data from controlling device |
| Optical power meter | |
| Optical power meter | testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch |
| Cord , etc. | |
| POWER | |
| Power Adapter | DC5V, 2A |
| Battery | Built-in 3.7V Lithium polymer battery ,3000mAh |
| Rechargeable | After charging 4.5 hours, working time lasts 12 hours |
| Low Consumption | Energy saving technology |
| General | |
| Working Temperature | -10°C~+50°C |
| Working Humidity | 30%-90% |
| Dimension/Weight | 189mmx112mmx47mm/500g |
