It is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, testing video level, controlling PTZ, scanning PTZ address, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and po ability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.

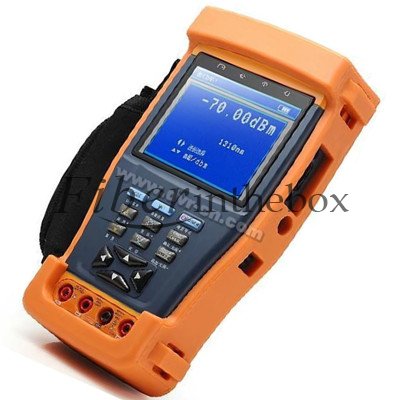

STest-895 equipped with the Optical Power Meter. Use in testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.
STest-895 is an ideal multifunction Instrument for CCTV security system, Fiber Optical communication, CATV and other Fiber Optic works.
• Optical power meter, testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord, etc.
• Digital Multimeter, performs AD/DC Voltage, AC/DC Current, Resistor, Conductivity, Capacitor and Diode test.
• DC12V power output
• Audio input
• Adjustable brightness, contrast, color of LCD
• Video Level testing, video signals measured in IRE or mV
• Automatically identify and adapt the video mode of NTSC and PAL
• Colorbar Video signal generator, transmit/receive colorful images
• Suppo more than twenty kinds of PTZ controller protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc
• PPTZ address scanning, search up the ID of PTZ camera
• Capture the PTZ protocol to assist the setting personnel to find out the control protocol and therefore easily target the problematic equipment
• Suppo RS232 and RS485 interface, the rate 150-19200bps
• Powerful in testing LAN cable, measuring the connecting status and displaying the sequence of connection
• PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the camera, adjust the ape ure, foci and setting parameters, run and call the preset
• Lithium Ion Polymer Batteries(3.7V DC3000mAh), more reliable, and work 15 hours
• Easy for use that the train is almost unnecessary
Dome camera and All in one camera testing
The CCTV transmitting channel testing
PTZ controller
| STest-890 | 2.8"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL color bar generator, PTZ controller, UTP cable tester, PTZ data analyst, PTZ address scanning, Lithium Ion Polymer Battery suppo 11 hours working time. |
| STest-891 | 2.8"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL color bar generator, PTZ controller, UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Lithium Ion Polymer Battery suppo 15 hours working time. |
| STest-893 | 3.5"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL colorbar generator, PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Lithium Ion Polymer Battery suppo 12 hours working time. |
| Stest-894 | 3.5"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL colorbar generator, PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Digital multimeter, Lithium Ion Polymer Battery suppo 12 hours working time. |
| STest-895 | 3.5"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL colorbar generator, PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Digital multimeter, Optical power meter, Lithium Ion Polymer Battery suppo 12 hours working time. |
| STest-896 |
3.5"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL color bar generator, PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, DC12V 1A power output for camera, Audio testing, Optical power meter, Lithium Ion Polymer Battery suppo 12 hours working time. |
|
MODEL |
STest-895 CCTV Security Tester |
|
Video Test |
|
|
Signal mode |
NTSC/PAL (Auto Adjust) |
|
Display |
3.5 inch TFT-LCD ,960 x 240 resolution |
|
LCD adjust |
Adjustable brightness, contrast, color of LCD |
|
Video in/out |
1 channel BNC Input & 1 channel Output |
|
Video output mode |
1.0 Vp-p |
|
Video Level test |
|
|
Level test |
Video signals measured in IRE or mV |
|
Power Output |
|
|
Power output |
DC12V, 1A |
|
Audio Test |
|
|
Audio input |
1 channel Audio input |
|
PTZ Controller |
|
|
Communication |
RS232, RS422 simplex and RS485 |
|
PTZ Protocol |
Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.customized |
|
Baud Rate |
150,300,600,1200,2400,4800,9600,19200bps |
|
Video Signal Generation |
|
|
Color bar generation |
Output 1 channel color bar video signal for testing monitor |
|
UTP Cable Test |
|
|
UTP cable test |
Test UTP cable connection state and display in the screen. Read the number of the test box. |
|
PTZ Data Capture and Display |
|
|
PTZ data test |
Capture and Analyze the PTZ data sent from controlling device |
|
PTZ Address Scanning |
|
|
PTZ address scan |
Search up the ID of PTZ camera |
|
Optical Power Meter |
|
|
Optical power meter |
testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc. |
|
Digital Multimeter |
|
|
Multimeter |
Voltage, current, resistance and capacitance measuring, continuity testing, diode testing. |
|
Power |
|
|
Power adapter |
DC5V, 2A |
|
Battery |
1 pcs Lithium Ion Polymer Batteries, 3.7V DC3000mAh |
|
Rechargeable |
4.5 hours recharging time, work for 12 hours |
|
Low consumption |
Sleeping mode, display battery power state |
|
Other Parameters |
|
|
Work Temperature |
-30°C~+70°C |
|
Work Humidity |
30%-90% |
|
Dimension/Weight |
112mmx189mmx47mm / 500g |
