Description

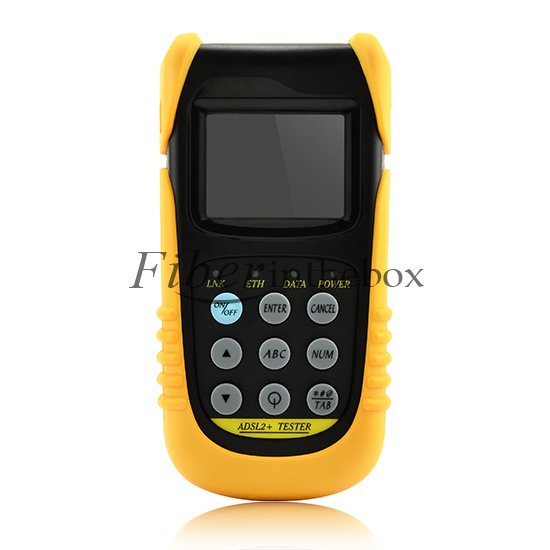

ADSL2+ Tester is an easy-to-use, hand-held advanced telecommunication tester that used for the installation, maintenance and measurement of ADSL2+ service. It suppo s the testing function such as parameter, error, DMM, PING that related to ADSL2+ service, user register authentication on the ADSL2+ user's line side. It also directly enables the engineers to verify, troubleshoot and evaluate the ADSL2+ service.The FS801C we provide can test not only the ADSL2 + / ADSL link management layer parameters, and alarm analysis of the parameters can be achieved. Flexible keyboard input, to facilitate the testing modification of the user name, password, the VPI / VCI, alarm thresholds and other parameters. Built-7 group of the VPI / VCI parameters, seven groups of PPP dial-up links, can meet the needs of different users, without frequent set. DMM test not only test the line voltage, loop resistance, capacitance and insulation parameters, and can estimate the line length. Simulation Modem function can also be automatically set to automatically shut down, It is simple, intuitive test results to meet a variety of xDSL line installation and maintenance needs, especially for the equipment of the site opened, project acceptance and routine maintenance, can be widely applied Telecom, CRC and other ADSL2 + service operators to meet all kinds of first-line installation and maintenance personnel.
Features
1. Comply with multi-standards: ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite), ADSL2 (G.992.3), ADSL2+(G.992.5)2. Automatically fit for the ADSL line standards, real-time display ADSL line connection status
3. Suppo both WAN PING and LAN PING
4. Suppo replacing MODEM and simulating the whole process of login on Internet
5. High resolution backlight large LCD, Handheld design and easy-to-use
6. Built-in Li rechargeable battery and sma charger circuit.
7. High storages capacity, can store up to 70 groups of test results including settings and results information.
8. Various Voice alarm and LED indications
9. Upgradeable software via an integrated RS-232 interface
10. Test results uploaded, conserved and printed by PCManager Software
Note: This price is for FS801C without the DMM function.
The ADSL Tester suppo s the testing function such as parameter, error, DMM, PING that related to ADSL2+ service, it can directly enables the engineers to verify, troubleshoot and evaluate the ADSL2+ service. For all our products of this kind, we provide one year warranty for that. If you need this high performance ADSL2+ Tester FS801C, welcome to contact us.
Package Picture
Specifications
Line standard
Frame structure
Line connection
2. Parameter
Fast Bit Rates (FAST): Upstream and Downstream
Interleaved Bit Rate (INTL): Upstream and Downstream
Max Bit Rate: Upstream and Downstream
Utilize Rate: Upstream and Downstream
Transmit Power: Upstream and Downstream
Line Attenuation: Upstream and Downstream
SNR Margin (Signal to Noise Ratio) : Upstream and Downstream
3. Link (Near and Far)
Loss of Power (LOP)
Loss of Signal (LOS)
Severe Error Frame (SEF)
Reed-Solomon Forward Error Corrections (FEC) INTL
Reed-Solomon Forward Error Corrections (FEC) FAST
Cyclic Redundancy Check (CRC) anomalies INTL
Cyclic Redundancy Check (CRC) anomalies FAST
No Cell Delineation (NCD) INTL
No Cell Delineation (NCD) FAST
Header Error Check (HEC) INTL
Header Error Check (HEC) FAST
Out of Cell Delineation (OCD) INTL
Out of Cell Delineation (OCD) FAST
Sever Error Second (SES)
Error Second (ES),
Bit Error (BE)
4. Alarm
Downstream Transmit Speed Threshold
Downstream SNR Margin Threshold
Downstream Channel Threshold
Downstream Line Attenuation Threshold
Upstream Line Attenuation Threshold
5. DMT
SNR and Character bits allocation (graphic format) under 256/512 DMT
6. PING testing
WAN PING testing: IP or domain ping testing, statistic Percentage of PING packet loss
LAN PING testing: IP PING testing, Find out the faultily connected PC and statistic Percentage of PING packet loss
7. DMM (Optional)
AC, DC voltage
Loop feeding current
Round resistance
Line capacitance
Line insulation capacitance
Estimate line distance
