Optical Fiber Identifier JW3306B

JW3306B Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated.
There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0, besides the Ø0.25 is applicable for bare fiber, the other three different dia. adapter heads are applicable for pigtails. With the JW3306B fiber identifier, you can indicate the signal direction in different fibers.



Easy-to-use with “ONE KEY” operation
Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
Displays the relative core power
More accurate test with Sunshade
Easy-to-replace adaptors
Durable metal housing and quality construction
Lower power indication

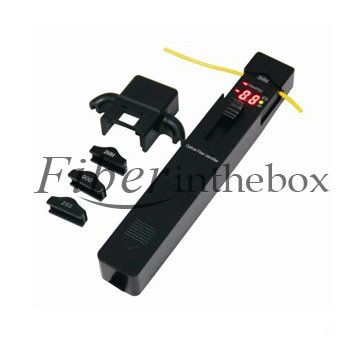

JW3306B Optical Fiber Identifier, 4pcs adapter heads, Sunshade, User Manual, Cotton Stick and Soft Carrying case.



Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For this optical fiber identifier, we provide one year warranty for that. If you have any problems or special requirement or want to buy this high performance optical fiber identifier JW3306B at a large quantity, please feel free to contact us. We will try our best to provide you the best service.

Type	JW3306B
Identified Wavelength Range	800-1700 nm
Identified Signal Type	CW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector Type	Ø1mm InGaAs 2pcs
Adapter Type	Ø0.25 (Applicable for Bare Fiber)
	Ø0.9 (Applicable for Ø0.9 Cable )
	Ø2.0 (Applicable for Ø2.0 Cable )
	Ø3.0 (Applicable for Ø3.0 Cable )
Signal Direction	Left & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)	-46~10(1310nm)
	-50~10(1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber)	-50~+10
Signal Frequency Display (Hz)	270, 1k, 2k
Frequency Test Range (dBm, Average Value)	Ø0.9, Ø2.0, Ø3.0	-30~0 (270Hz,1KHz)
		-25~0 (2KHz)
	Ø0.25	-25~0 (1KHz,2KHz)
		-20~0 (2KHz)
Insertion Loss(dB, Typical Value)	0.8 (1310nm)
	2.5 (1550nm)
Alkaline Battery(V)	9
Operating Temperature(°C)	-10~+60
Storage Temperature(°C)	-25~+70
