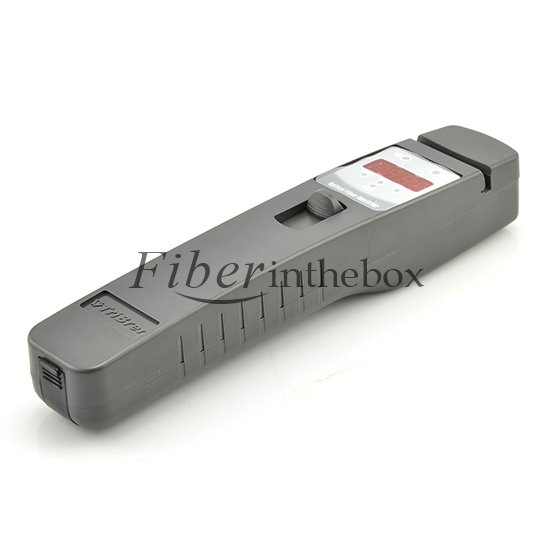

New High Performance Optical Fiber Identifier AFI400

The AFI400 is a kind of high quality optical fiber identifier which can indicate the signl direction in fiber without disrupting traffic, and it is suitable for dia.0.25mm/0.9mm/3.0mm fiber, and no need to replace the clamp block, more convenient than others.



• Suppo to detect optical signals without disrupting traffic
• Based on non-destructive technology
• Indicate the signal direction in fiber
• Detect a variety of optical tones, 270Hz, 1kHz and 2kHz
• Suitable for 0.25mm, 0.9mm, 3.0mm fiber, and no need to replace the clamp block, more convenient than others
• Build in visible fault locator 1mW or 10mW optional;
• Battery low indication;
• Powered by 2 units of 1.5V AA alkaline batteries;
• One year guarantee



Optical fiber identifier AFI400, User’s manual, Calibration ce ification, Carrying case



Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For this optical fiber identifier, we provide one year warranty for that. If you have any problems or special requirement or want to buy this high performance optical fiber identifier AFI400 at a large quantity, please feel free to contact us. We will try our best to provide you the best service.

	AFI 400		AFI420S	AFI420L
Wavelength Range	900 to 1700nm (SM)
Recognizable signal type	CW, 2kHz, 1kHz, 270Hz +/- 10%
Detector Type	InGaAs 2pcs
Fiber Type	0.9, 0.25, 3.0 mm fiber
Sensitivity	1310nm	+10dB to -20dBm(Continuous Wave)
		+10dB to -15dBm (Modulated Signal)
	1550nm	+10dB to -30dBm(Continuous Wave)
		+10dB to -25dBm (Modulated Signal)
LED Indicator	Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery
Visual Fault Locator			1mW		10mW
Storage Temperature	-20 -- +60 °C, < 90%RH
Operating Temperature	-10 -- +50 °C, < 90%RH
Power Supply	AA * 2

* at 20±3℃, 0.9mm fiber, with white coat
