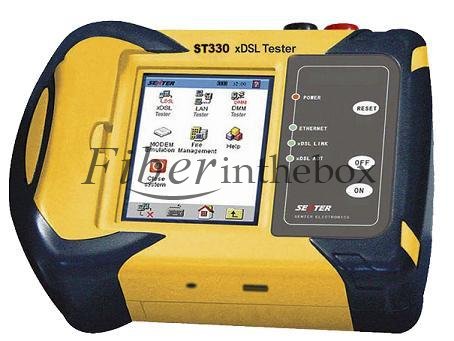

Brand New ST330 (ADSL /ADSL2+) xDSL Tester

ST330 xDSL Tester is designed for present all kinds of xDSL line including ADSL, ADSL2, ADSL2+, READSL. It not only can test xDSL physical layer parameter and also can help you to confirm whether your line is proper to provide xDSL service.
It can evaluate your line quality. It also can have PPPoE dial, do IE network page browsing, and emulate user ' s PC+ Modem by inside Modem of ST330 to test the connection between user and ISP provider. You can have all kinds of test such as Ping, Ipconfig, Rouge, Trace after successful dial. ST330 also can emulate the user ' s PC to test broadband IP line or have PPPoE dial by user ' s Modem to test the connection of IP network and Modem problem or to remove the problem arisen by computer.
ST330 takes 240X320 TFT true color LCD, touching screen and embedded system. So it is easy to operate and to see the test result.



CE approval
Modular platform design
To identify and adapt the DSL line connect mode automatically
WINCE display and touching operation for user’s easy operation
Remote software upgrade
Link to USB equipment, keyboard, mouse and memory key by USB po



xDSL Test
a. Physical layer test
b. Modem parameter set
c. PPPoE prope ies
e. PPPoE dial
f. Network layer test
g. Webpage browse
h. Loopback test
i. FTP client
j. Webpage speed test
LAN Test
a. Network card prope ies
b. PPPoE prope ies
c. PPPoE dial(PPPoA dial optional)
d. Network layer test
e. Faxiative IP test
f. Webpage browse
g. FTP client
h. Webpage speed test
DMM Test
a. AC/DC voltage
b. Loop resistance
c. Capacitance
d. Insulation
MODEM Emulation
File Management
a. Data record/deletion
b. Record browsing
c. File transfer among the tester, memory key and PC
System Software Upgrade
Screen Recalibration



ST330 xDSL Tester, Charger, Direct ethernet network line, Test cord, LCD protective board, Touching stick, User manual, List, Carry case, Handle



The ADSL Tester suppo s the testing function such as parameter, error, DMM, PING that related to ADSL2+ service, it can directly enables the engineers to verify, troubleshoot and evaluate the ADSL2+ service. For all the ADSL Tester, we provide one year warranty for that. If you need this high performance ST330 xDSL Tester at a large quantity, welcome to contact us



Technique
Chip Set:	Globespanvirata
Relevant Standards:	ANSI T1.413 ITU-T G.992.1 (G.DMT) ITU-T G.992.2 (G.Lite) ITU-T G.992.3 (ADSL2) ITU-T G.992.5 (ADSL2+) ITU-T G.994.1 (G.HS)
Physical Layer Test
ADSL2+ Module
Attenuation (dB):	0~63.5
Noise margin (dB):	0~32
Up channel speed (Mbps):	0~1.2
Down channel speed (Mbps):	0~24
The max test distance:	6.5 km
DMT sub channel bit number	0~15
State display	Signal loss, connection close.
DSL line up/down maximum rate and capacity ratio
DSL line local output power
DSL line error number (CRC,HEC,FEC,NCD,OCD)
ADSL2 Module
Attenuation (dB):	0~63.5
Noise margin (dB):	0~32
Up channel speed (Mbps):	0~1
Down channel speed (Mbps):	0~8
DSL line error number (CRC,HEC,FEC,NCD,OCD)
DSL line local output power
DSL line connection mode
DMM Test
DC voltage (V):	0~400
AC voltage (V):	0~290
Loop resistance(Ω):	0~20000
Capacitance (nF):	0~1000
Insulation resistance (MΩ):	0~50
OTHER PARAMETERS
Memory capacity:	20 M
Display:	240×320 LCD, touch screen, Windows interface
Power Supply	Internal: Rechargeable 2800mAH Li-ion battery
Battery Duration:	8hs (except Modem status)
Dimensions/Weight:	176mm×130mm×60mm/0.7kg(With battery)
