ST332B ADSL2+ Tester/ADSL Tester / xDSL Tester / DSL Tester

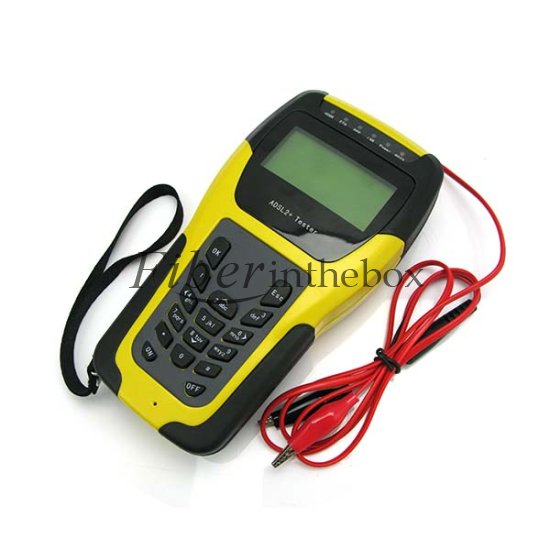

ST332B tester is a multi-functional and hand-held ADSL2+ test instrument with small size, specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL etc) and maintenance. It provides xDSL test, dial test, DMM test, Modem emulation, telephone call function, line voltage indication and so on.
The tester adopts LCD display and menu operation which can display the test results directly and improve the xDSL broadband service greatly. It’s the best choice for the field operators of installation and maintenance.



Test objects: ADSL; ADSL2; ADSL2+; READSL
Fast copper tests with DMM (AC V, DC V, Loop and Insulation Resistance, Capacitance)
Suppo s modem emulation and simulating login to Internet
Suppo s ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
Suppo s all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)
Connects to CO via alligator clip or RJ11
Rechargeable Li Battery
Beep and LEDs alarm indications (Lower Power, PPP, LAN, ADSL)
Data memory capacity: 50 records
LCD display, menu operation
Auto shut off if no any operation on keyboard
Compliant with all known DSLAMs
Software management
Simple, po able and money-saved



DSL physical layer test
Modem emulation (Replace the user Modem completely)
PPPoE dialing  (RFC1683,RFC2684,RFC2516)
PPPoA dialing  (RFC2364)
IPoA dialing
Telephone call function
DMM test (AC Voltage: -400 to 400 V; DC Voltage: 0 to 290 V; Capacitance:0 to 1000nF, Loop Resistance: 0 to 20KΩ;Insulation Resistance: 0 to 50MΩ;Distance Test)
Pingfunction (WAN & LAN)
Data upload to computer by RS232 core and software management
Setup system parameter: backlight time, shut off automatically time without operation, press tone, revise PPPoE/PPPoA dial attribute, user name and password, restore factory value and so on.
Check dangerous voltage
Four grades service judge (Excellent, Good ,Ok,Poor)



The ADSL Tester suppo s the testing function such as parameter, error, DMM, PING that related to ADSL2+ service, it can directly enables the engineers to verify, troubleshoot and evaluate the ADSL2+ service. For all the ADSL Tester, we provide one year warranty for that. If you need this high performance ST332B ADSL/xDSL Tester at a large quantity, welcome to contact us.
