TL580 PON Power meter

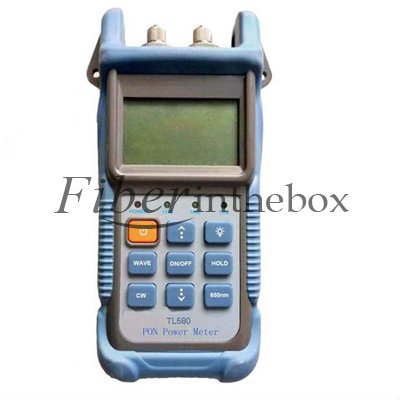

TL580 PON Power meter is specially designed for PON Network construction and maintenance which can be connected between OLT and ONT. The voice, data, video signal online can be measured and displayed synchronously with this meter. The User can preset 10 groups pass/fail threshold for each wavelength. The LED will display the different colors when the pass/fail threshold has different status. The tester can connect with PC through USB po and can read up to 1000 groups of test data. Meanwhile its keypad and display is easier due to completed English design.
Applications
Telecom optical installations
PON installations
Fiber optics installation and maintenance
Optical network commissioning
Fiber transmission quality assessment
Key Features
Test the three wavelength of the PON network synchronously: 1490nm, 1550nm, 1310nm
Can test the burst mode signal of 1310nm
Pass/fail threshold value setting with LED indication.
Upload data; calibrate the wavelength through management software.
Can save 1000 records and upload the records to the management software
Supply 10 groups threshold values
Auto shut off backlit
Real-time display
USB po connect with PC
EN Menu display
| SPECIFICATIONS | |||
| Item | TL580 Pon Power Meter | ||
|
Standard wavelength |
1310 (Up) |
1490 (Down) |
1550 (Down) |
|
Pass Zone(nm) |
1260~1360 |
1470~1505 |
1535~1570 |
|
Range(dBm) |
-40~+10 |
-40~+10 |
-40~+20 |
|
1310nm(dB) |
|
>40 |
>40 |
|
1490nm(dB) |
>40 |
NA |
>40 |
|
1550nm(dB) |
>40 |
>40 |
|
| Accuracy | |||
|
Unce ainty(dB) |
±0.5 |
||
|
Polarization relevant loss(dB) |
<±0.25 |
||
|
(Db) |
±0.1 |
||
|
Through Inse ion loss(dB) |
<1.5 |
||
|
Resolution |
0.01dB |
||
|
Unit |
dBm/xW |
||
| PASS/FAIL Threshold | LED Indications | ||
|
Pass/fail 1310 nm(dB) |
Green: pass; Red: fail; Blue: warning |
||
|
Pass/fail 1490nm(dB) |
Green: pass; Red: fail; Blue: warning |
||
|
Pass/fail 1550 nm(dB) |
Green: pass; Red: fail; Blue: warning |
||
| General Specification | |||
|
Display |
128*64 lattices |
||
|
Battery |
3.7V 1600mAH Rechargeable Li battery; continuous wok to 60 hours |
||
|
Dimensions(mm) |
185*80*45 |
||
Note: Fiberinthebox is your reliable supplier of optical power meter, all the products are 100% tested before delivery. If you need this brand new TL580 PON optical power meter at a large quantity, please feel free to contact us at sales@fiberinthebox.com . We will provide you a special discount.
|
SPECIFICATIONS |
|||
|
Item |
TL580 Pon Power Meter |
||
|
Standard wavelength |
1310 (Up) |
1490 (Down) |
1550 (Down) |
|
Pass Zone(nm) |
1260~1360 |
1470~1505 |
1535~1570 |
|
Range(dBm) |
-40~+10 |
-40~+10 |
-40~+20 |
|
1310nm(dB) |
|
>40 |
>40 |
|
1490nm(dB) |
>40 |
NA |
>40 |
|
1550nm(dB) |
>40 |
>40 |
|
|
Accuracy |
|||
|
Uncertainty(dB) |
±0.5 |
||
|
Polarization relevant loss(dB) |
<±0.25 |
||
|
(Db) |
±0.1 |
||
|
Through Insertion loss(dB) |
<1.5 |
||
|
Resolution |
0.01dB |
||
|
Unit |
dBm/xW |
||
|
PASS/FAIL Threshold |
LED Indications |
||
|
Pass/fail 1310 nm(dB) |
Green: pass; Red: fail; Blue: warning |
||
|
Pass/fail 1490nm(dB) |
Green: pass; Red: fail; Blue: warning |
||
|
Pass/fail 1550 nm(dB) |
Green: pass; Red: fail; Blue: warning |
||
|
General |
|||
|
Display |
128*64 lattices |
||
|
Battery |
3.7V 1600mAH Rechargeable Li battery; continuous wok to 60 hours |
||
|
Dimensions(mm) |
185*80*45 |
||
