Description

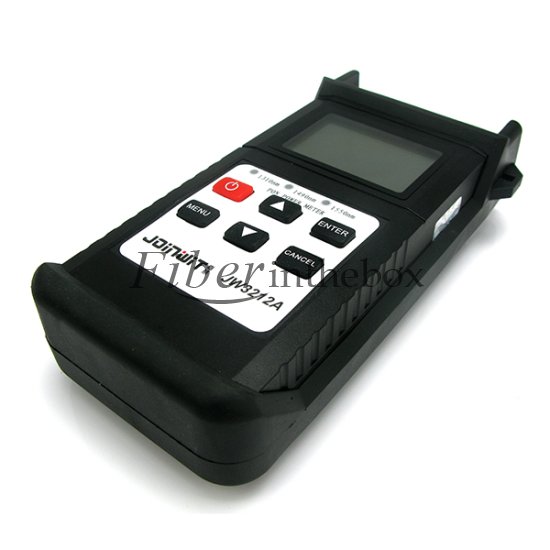

JW3212B PON Optical Power Meter Is an upgraded version of JW3212B PON power meter, it aims at the FTTx application and maintenance which not only can be used test and estimate the signals of the voice, data and video at the same time, but also can be used to test the continues wave light power. The calibrated wavelengths for CW light power measurements includes 850, 1300,1310,1490,1550,1625nm. It is an essential and tester for the construction and maintenance of the PON projects
Features
Providing simultaneous measurement at all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
Used in Burst mode measurement of 1310nm upstream
CW light power measurement is available with wavelengths of 850,1300,1310,1490,1550,1625nm.
VFL Function for quick and efficient Visual Inspection
USB communication po enables data transfer to a PC
1000 measurement items can be saved in JW3212B PON power meter or computer for data review.
JW3212B PON power meter offers up to 10 different threshold sets in total; Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
User self-calibration can be performed and "Factory Default" mode can be retrieved in computer through the software.
PON SC standard connector, easy to test, other type connector po can be required on customer requests.
Backlight LCD display suppo s night operation.
10 minutes Auto-off function can be activated or deactivated with keypad operation.
Used in Burst mode measurement of 1310nm upstream
CW light power measurement is available with wavelengths of 850,1300,1310,1490,1550,1625nm.
VFL Function for quick and efficient Visual Inspection
USB communication po enables data transfer to a PC
1000 measurement items can be saved in JW3212B PON power meter or computer for data review.
JW3212B PON power meter offers up to 10 different threshold sets in total; Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
User self-calibration can be performed and "Factory Default" mode can be retrieved in computer through the software.
PON SC standard connector, easy to test, other type connector po can be required on customer requests.
Backlight LCD display suppo s night operation.
10 minutes Auto-off function can be activated or deactivated with keypad operation.
Kind Note
We provide FC, ST, SC Connector for choose. If no special requirement, we will send you the FC connector.If you need more than one connector, please contact our sales at sales@fiberinthebox.com for more details because the price would be different
Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new JW3212B power meter at a large quantity.
Specifications
| Model | JW3212B |
| 1310nm upstream measurement | |
| Pass zone (nm) | 1260~1360 |
| Isolation @1490/1550nm(dB) | >40 |
| Measurement Range (dBm) | -40~+10 |
| 1490nm downstream measurement | |
| Pass zone (nm) | 1470~1505 |
| Isolation @1550nm(dB) | >30 |
| Isolation @1310nm(dB) | >40 |
| Measurement Range (dBm) | -40~+12 |
| 1550nm downstream measurement | |
| Pass zone (nm) | 1535~1570 |
| Isolation @1490nm(dB) | >40 |
| Isolation @1310nm(dB) | >40 |
| Measurement Range (dBm) | -40~+25 |
| Measurement Accuracy | |
| Connatural Uncertainty (dB) | ±0.5 |
| Linearity (dB) | ±0.1 |
| Passing through insertion Loss (dB) | <1.5 |
| General Information | |
| Display | LCD:128*64 |
| Measurement Unit | DBm/Db/xW |
| Resolution | 0.01dB |
| Fiber Type | 9/125um |
| Detector Type | InGaAs |
| Optical Connector | FC/SC/ST Interchangeable |
| Operation Voltage (V) | DC 3.3~5.5 |
| Power Supply | 3 AA 1.5V battery |
| Continuously Operation time (h) | PON Power Meter Mode: 90h |
| Normal optical power meter mode: 100h | |
| VFL Mode: 50h | |
| Operating Temperature(℃) | -10~+60 |
| Storage Temperature(℃) | -25~+70 |
| Weight | 500g |
| Note: The operation time of the battery are all for the instrument that do not turn on backlight, if the backlight turn on the operation time will be shorted. | |
| Normal Optical Power Meter Module | |
| Measurement Accuracy | |
| Connatural uncertainty(dB) | ±0.25 |
| Linearity(dB) | ±0.1 |
| Measurement Range(dBm) | -70～+6 or -50~+26 |
| General Information | |
| Measurement Unit | dB/dBm |
| Resolution (dB) | 0.01 |
| Calibration Wavelength(nm) | 850, 1300, 1310, 1490, 1550, 1625 |
| Detector Type | InGaAs |
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter |
| Fiber Type | 9/125um |
| VFL Module | |
| Output Power(mW) | 1mw |
| Wavelength(nm) | 650 |
| Optical Connector | FC/2.5 universal connector |
