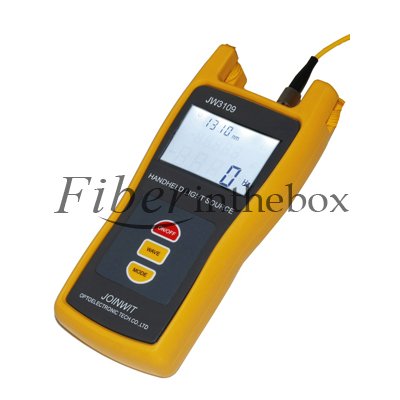

Handheld JW3109 Fiber Optical Light Source 850/1300nm

Description

JW3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the JW3208 optical power meter, it is a perfect solution for the optical fiber network characterization.

Features

Provides 1~4 output wavelengths which can be optional according to customer's needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display suppo s night operation
Compact size and decent appearance
Large LCD, easy operation
Alternative 10 minutes Auto-off function conserving battery life

Application

Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements

Recommendation

JW3109 Handheld Light Source is designed for optimal use with JW3208 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable.

Standard Packages

Model	Includes
All JW3109 Models	JW3109 Optical Light Source, Protective Rubber Boot, 3pcs 1.5V batteries,User Manual, Cotton swabs and Soft carrying case.

This price is only for JW3109 with two output wavelengths(850/1300nm) optical fiber light source. And we also provide JW3109 optical fiber light source with three output wavelengths and fouroutput wavelengths according to customers' needs.



Fiberinthebox is your reliable supplier of optical fiberal light source, and all of it have been 100% tested before delivery. And we even provide one year warranty for that. If you have any problems or special requirement or want to buy this JW3109 optical fiber light source at a large quantity, please feel free to contact us. We will try our best to provide you the best service.

Specifications
