Features
It can test the loss of the fiber with the optical power meter
It can provide the reference for power meter and variable attenuator
High stabilization
Three modulations: 270Hz, 1KHz, 2KHz
LCD display & backlight
Battery energy indication
Battery charge indication
Energy save mode: about 10 minutes no operation will cause the device auto power off (can be cancelled)
Full energy can suppo above 16 hours operation
It can provide the reference for power meter and variable attenuator
High stabilization
Three modulations: 270Hz, 1KHz, 2KHz
LCD display & backlight
Battery energy indication
Battery charge indication
Energy save mode: about 10 minutes no operation will cause the device auto power off (can be cancelled)
Full energy can suppo above 16 hours operation
Specifications
| Laser source | BML223-M3M8 | BML223-S3S5 |
| Wavelength | 1300nm & 850nm | 1310nm & 1550nm |
| Stabilization* | ±0.05dB / 1 hour; ±0.1dB / 8 hours | |
| Output Power | > - 6dBm @ 1310nm/1490nm/1550nm/1625nm | |
| > -10 dBm @ 850nm/1300nm | ||
| Connecting Adaptor | FC/PC (SC or ST or 2.5mm universal adapter) | |
| Status Indication | LCD | |
| Modulation | 270Hz,1KHz,2KHz | |
| Auto Power Off | About 10 minutes(can be cancelled) | |
| Battery Charge | Yes | |
| Power Supply | AA * 2 batteries or AC/DC power supply adapter | |
| Size | 160mm*75mm*32mm | |
| Weight | About 180g | |
Kind Note
We provide FC connector as default connector. If no special requirement, we will send you the FC connector. If you need more than one connector, please contact our sales at sales@fiberinthebox.com for more details because the price would be different.Fiberinthebox can supplies lots kinds of optical fiber light sources and all with high quality and 100% tested before delivery. If you need this New BML223A Handheld Optic Laser Light Source 850&1300nm at a large quantity or have any problems or special requirement, just feel free to contact us, we will do our best to serve you.

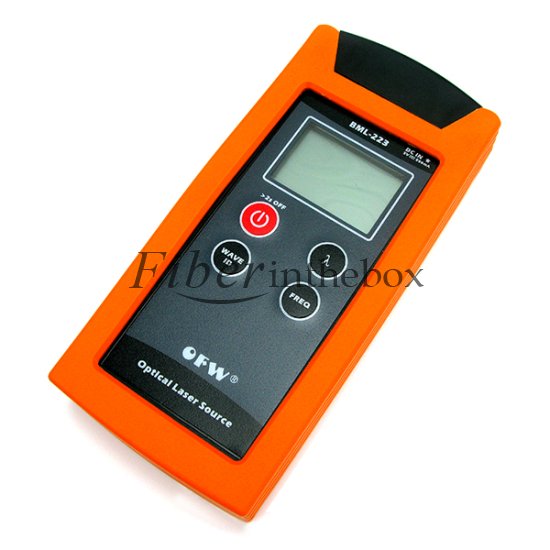

Picture Detail
.JPG)
.JPG)
.JPG)
