Description

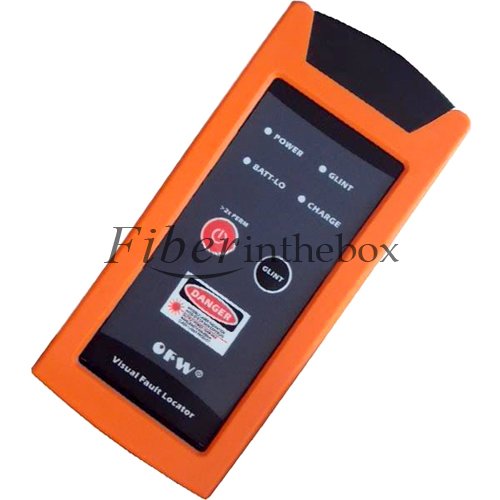

The BML200 visual fault locator is a kind of fiber tester which specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation.It includes: Finding the breakpoint, poor connections, bending or cracking in optical fiber cables; Finding the faults of OTDR.
This BML200 visual fault locator is an essential tool for troubleshooting a optical fiber system, it is really of high quality and good price. And it is with a energy save mode: 10 minutes no operation will cause the device automatic power off, so hommization.
Features
Provide two different output power and different dynamic distance:BML200: >1mW
BML201: >10mW
Fast locate the broken point
The universal fiber adapter can be connected with all 2.5mm adapters, e.g. FC, SC or ST
2Hz glint or continuous output
Battery low indication
Energy save mode: about 10 minutes no operation will cause the device automatic power off
Full energy can suppo above 12 hours operation
Accessories
Carrying bag, User’s manual, Box, Calibration ce ification
Specifications
|
|
BML-200 |
BML-201 |
|
Wavelength |
650nm ± 20nm |
|
|
Output Power |
> 1mW |
> 10mW |
|
Dynamic Distance |
3 ~ 5 km |
8 ~ 10 km |
|
Glint |
2Hz |
|
|
Connecting Adapter |
2.5mm Universal adapter |
|
|
Auto Power Off |
No operation in 10 minutes (can be cancelled), Low battery energy |
|
|
Battery Charge |
Yes |
|
|
Operate Time |
Above 12 hours |
Above 8 hours |
|
Storage Temperature |
-20 -- +60 ℃, 90%RH |
|
|
Operating Temperature |
-10 -- +50 ℃, 90%RH |
|
|
Power Supply |
2 * AA batteries or AC/DC adapter |
|
|
Size |
160mm * 75mm * 32mm |
|
|
Weight |
About 170g |
|
