Introduction

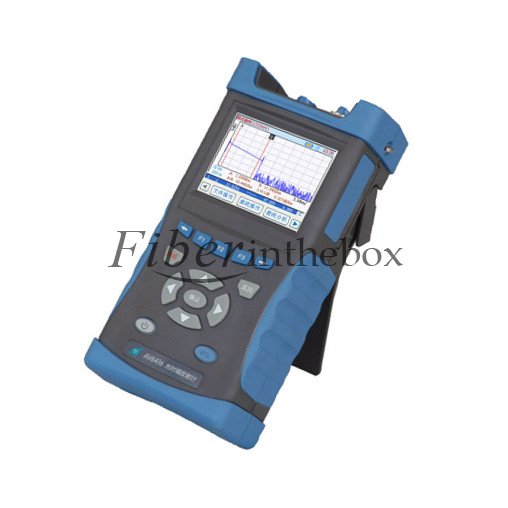

AV6416 palm OTDR is the newest instrument designed for testing FTTx network. It's mainly used to measure the physical characteristics of optical fiber under test, such as the length、the transmission loss and the splice loss etc.. It can also locate the faults or breaks of optical fiber. It's widely applied in the manufacture, construction and maintenance in optical fiber communication system.
AV6416 palm OTDR has the most advanced technology of double-color & material integrative mould, which is novel and beautiful in appearance.AV6416 offers three wavelengths and VLF in one handheld unit, especially for testing passive optical network (PON) in FTTx. In addition, it's equipped with comfo able gallus for carrying conveniently.
AV6416 palm OTDR has the most advanced technology of double-color & material integrative mould, which is novel and beautiful in appearance.AV6416 offers three wavelengths and VLF in one handheld unit, especially for testing passive optical network (PON) in FTTx. In addition, it's equipped with comfo able gallus for carrying conveniently.
Features
Handheld, lightweight and convenience for carrying
The most advanced technology of double-color & material integrative mould in trade
Advanced anti-reflective TFT LCD, visible clearly in field
1.6m extra-sho event dead zone
Communication light check automatically
0.25m high resolution,65534 sampling points
Fast auto measurement, one-button operating
Double USB interfaces, suppo ing USB stick and direct cable download to PC via ActiveSync
Suppo ing Bellcore GR196 file format in writing or reading
Function of intelligent indicating of remaining capacity of battery and warning if the voltage of battery is low.
WinCE operation system, double operating interface of Chinese and English
Built-in lithium battery with high capacity for over 10 hours of operating life
Visible fault locating (VFL)
Universal FC/PC,FC/SC,FC/ST connector type, it is convenient for surface cleaning
Unique function of updating system on-line, returning to factory is unnecessary
Extra-sho event dead zone
High-speed auto measurement
High-speed auto analysis
Powerful file management
Convenient VFL
Communication light check
The most advanced technology of double-color & material integrative mould in trade
Advanced anti-reflective TFT LCD, visible clearly in field
1.6m extra-sho event dead zone
Communication light check automatically
0.25m high resolution,65534 sampling points
Fast auto measurement, one-button operating
Double USB interfaces, suppo ing USB stick and direct cable download to PC via ActiveSync
Suppo ing Bellcore GR196 file format in writing or reading
Function of intelligent indicating of remaining capacity of battery and warning if the voltage of battery is low.
WinCE operation system, double operating interface of Chinese and English
Built-in lithium battery with high capacity for over 10 hours of operating life
Visible fault locating (VFL)
Universal FC/PC,FC/SC,FC/ST connector type, it is convenient for surface cleaning
Unique function of updating system on-line, returning to factory is unnecessary
Extra-sho event dead zone
High-speed auto measurement
High-speed auto analysis
Powerful file management
Convenient VFL
Communication light check
Application
FTTX
HFC (CATV)
Optical fiber network
HFC (CATV)
Optical fiber network
Specifications
| Module | 3528 | 5626 | 3428 |
| Wavelength | 1310nm/1550nm±20nm | 1550nm/1625nm±20nm | 1310nm/1550nm/1490nm±20nm |
| Applicable Fiber | Single-mode | ||
| Dynamic Range(* note 1) | 28/26dB | 26/24dB | 28/26/24dB |
| Distance Measurement Accuracy | ±(1m + sample space + 0.003% * measurement distance) | ||
| Event Dead Zone(* note 2) | ≤1.6m | ||
| Sampling Resolution | 0.25, 0.5, 1, 2, 4, 8, 16m | ||
| Distance Range | 4, 8, 16, 32, 64, 128, 256km | ||
| Pulse width | 10, 30, 80, 160, 320, 640, 1280, 5120, 10240ns | ||
| Loss threshold | 0.01dB | ||
| Sampling points | 65534 | ||
| Linearity | 0.05dB/dB | ||
| Memory capacity | ≥800 Traces | ||
| IOR setting | 1.00000∼2.00000 | ||
| Display | Color LCD (touch screen) | ||
| Interface | USB, Min-USB | ||
| VFL | 650nm±10nm, 2mW(typical); CW/1Hz | ||
| Language | Simple Chinese/English | ||
| Optical Connector | FC/UPC (universal connector) | ||
| Power Supply | DC:15V∼20V(3A), (AC adapter 100∼240V,50/60Hz,1.5A),Built-in Lithium battery：4400mAh,7.4V,operating time≥10 hours(* note 3) | ||
| Dimensions | 210mm*100mm*60mm | ||
| Weight | about 1kg | ||
Note1: pulse width 10240ns, average times≥300,SNR=1,23℃±2℃;
Note2: dead zone mode, distance range : ≤ 4km, pulse width:10 ns, terminal reflection loss:≥40 dB, typical;
Note3: low brightness, exclude measuring.
