Introduction

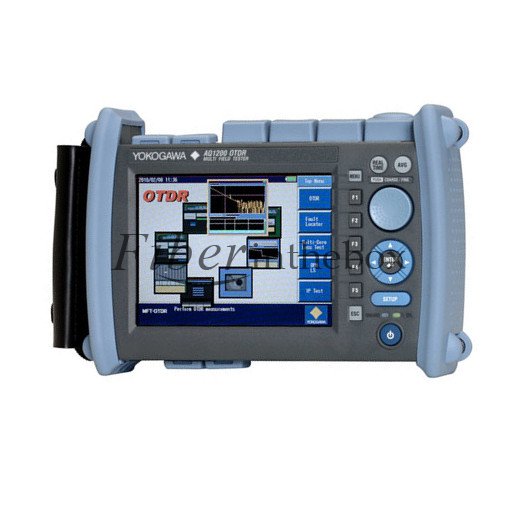

The AQ1200 is the newest addition to Yokogawa's OTDR product family offering an even smaller and lighter alternative to the AQ7275 models.
Like the larger AQ7275, it also offers an industry leading 0.8m event dead zone as well as the convenient capability to display a fiber connector inspection probe using one of the unit's standard USB I/O po s.
Tradeoffs compared to the larger AQ7275 include omission of the built-in launch fiber option, limited to SMF fiber only and a reduced dynamic range of 32/30dB.
Features
a. OTDR that suppo s SM1310/1550nm with a sho 80 cm event dead zone
b. Quick power on for faster operations
c. Able to display trace and event information at the same time
d. Full auto mode for novice users and information tips for more experienced users
e. Bright LCD screen for easy viewing inside buildings and outside
f. Includes Fault Locator functions for fast measurements
g. Suppo s external USB Video fiber inspection probe
b. Quick power on for faster operations
c. Able to display trace and event information at the same time
d. Full auto mode for novice users and information tips for more experienced users
e. Bright LCD screen for easy viewing inside buildings and outside
f. Includes Fault Locator functions for fast measurements
g. Suppo s external USB Video fiber inspection probe
Excellent Functionality and Operability
a. 5.7 inch color LCD for easy viewing
b. Multi-language suppo
c. AQ7275 OTDR-like interface
d. USB po for data storage
e. Quick and easy data exchange with PC through USB connection
b. Multi-language suppo
c. AQ7275 OTDR-like interface
d. USB po for data storage
e. Quick and easy data exchange with PC through USB connection
Application Drawing
.jpg)
Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For the OTDR, we provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of this YOKOGAWA AQ1200 MFT-OTDR, please feel free to contact us. We will try our best to provide you the best service.
Specifications
| Common | ||
| Horizontal Axis Parameters | ||
| Sampling resolution | 5cm, 10cm, 20cm, 50cm, 1m, 2m, 4m, 8m, 16m, 32m | |
| Readout resolution | 1cm (Min.) | |
| Number of sampled data | Up to 128,000 points (Firmware Rev2.01 or later) | |
| Group refractive index | 1.30000 to 1.79999 (in 0.00001 steps) | |
| Unit of distance | km, kf or miles | |
| Distance measurement accuracy | +/- 1m +Measurement distance*2*10 +/- sampling resolution | |
| Excluding IOR uncertainty | ||
| Vertical Axis Parameters | ||
| Vertical axis scale | 0.2 dB/div, 0.5dB/div, 1dB/div, 2dB/div, 5dB/div, 7.5dB/div | |
| Readout resolution | 0.001dB(Min.) | |
| Loss measurement accuracy | +/- 0.05dB/dB (When the measuring loss is 1dB or less, the accuracy is within +/-0.05 dB.) | |
| OTDR Measurement Function | ||
| Distance measurement | Displays up to eight digits of the relative one way direction between two arbitrary points on the trace. | |
| Loss measurement | Displays one way loss in steps of 0.01dB to a maximum of 5 digits. Displays the one way loss, loss per unit length, and splice loss between any arbitrary points on the trace. | |
| Return loss measurement | Measurement return loss and total return loss of a fiber cable or between two arbitrary points on the trace. | |
| OTDR Analysis Functions | ||
| Analysis functions | Section analysis | |
| Internal Memory | ||
| Memory capacity | 1000 waveforms or more | |
| Can store measured waveforms and measurement conditions | ||
| Display | ||
| Display | 5.7 inch color TFT LCD | |
| Total number of displayed pixels a. | 640 (horizontal) * 480 (vertical) pixels | |
| a. The LCD may contain some pixels that are always ON or OFF (0.002% or fewer of all displayed pixels including RGB), but this is not indicative of a general malfunction. | ||
| External Interface | ||
| USB | USB1.1 Type A and Type B, one each | |
| Type A: For external memory, external printer, and fiber inspection probe | ||
| Type B (mini): For connecting to an external PC for remote control or access to the OTDR'S internal memory | ||
| File Formats | ||
| File formats | Read: SOR, SET (AQ7270/AQ7275/AQ1200) | |
| Write: SOR (Telcordia), SET, CSV, BMP, JPG, PNG | ||
| General | ||
| Item | ||
| Environmental conditions | Storage temperature | -20 to 60℃ |
| Operating temperature | 0 to 45℃ (0 to 40℃ when AC adapter is being used); (0 to 35℃when battery is being charged) | |
| Humidity | 20 to 85% RH( no condensation) | |
| Power requirements | 100 to 240 VAC, 50/60 Hz | |
| Battery pack | Run time: 6 hours, Recharge time : 5 hours | |
| Dimensions | 217.5 (W) * 157(H) * 74(D)mm, excluding projections | |
| Mass | Approx. 1KG, including battery pack | |
| Compliant standards | Laser safety | Class 1 M (IEC 60825-1:2007) |
| Safety | EN61010-1 | |
| Emissions | EN61326-1 class A, EN55011 class A, group 1 | |
| Immunity | EN61326-1 Table 2 (for industrial locations) | |
