Introduction

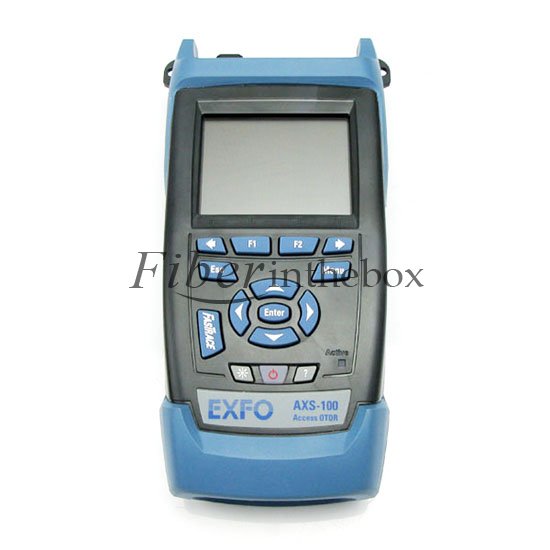

EXFO’s AXS-100 Access OTDR combines the industry’s leading OTDR technology with power meter functionalities in one powerful handheld unit. Optimized for point-to-point testing of passive optical networks (PON) within FTTx architectures, it offers several wavelength configurations and a wide range of options, for first-class flexibility and full coverage of sho -haul OTDR test applications.
Designed for single mode OTDR troubleshooting, the AXS-100 features an in-service PON troubleshooting option. It offers the 1310 and 1550 wavelengths on one po , and filtered 1625nm on the other po , with respective dynamic ranges of 29, 28 and 28 dB.
Designed for single mode OTDR troubleshooting, the AXS-100 features an in-service PON troubleshooting option. It offers the 1310 and 1550 wavelengths on one po , and filtered 1625nm on the other po , with respective dynamic ranges of 29, 28 and 28 dB.
Unique Advantages
FasTrace function: one-touch testing for top user-friendliness
8-hour power autonomy
Lightweight: 1 kg
USB po (memory-stick compatible) for easy data transfer
Large internal memory (up to 500 results)
Transflective color display for viewing clear results under bright sunlight
Superior automated analysis for a better, easier and faster diagnosis
Automatic pass/fail analysis and macrobend locating
Auto-zoom on events
8-hour power autonomy
Lightweight: 1 kg
USB po (memory-stick compatible) for easy data transfer
Large internal memory (up to 500 results)
Transflective color display for viewing clear results under bright sunlight
Superior automated analysis for a better, easier and faster diagnosis
Automatic pass/fail analysis and macrobend locating
Auto-zoom on events
Applications
• FTTx last-mile in-service troubleshooting
• Point-to-point link testing
• CATV network testing
• Point-to-point link testing
• CATV network testing
Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For the OTDR, we provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of this EXFO AXS-100 single mode handheld OTDR, please feel free to contact us. We will try our best to provide you the best service.
| AXS-100 | AXS-110 | |
| Wavelength (nm) | 1310/1550/1625 | 850/1300/1310/1490/1550/1625 |
| Dynamic range (*note b) (dB) | 29/28/28 (1310/1550/1625) | 24/25/37/33/35/37 |
| Pulse width (ns) | 10, 30, 100, 275, 1000, 2500, 10 000 | Multimode: 5, 10, 30, 100, 275, 1000 |
| Singlemode: 5, 10, 30, 100, 275, 1000, 2500, 10 000 | ||
| Event dead zone (*note c) (m) | 2.5 | 0.8 |
| Attenuation dead zone (note c) (m) | 11/12/12 | 3.5/4.5/4/4.5/4.5/4.5 |
| Launch conditions (*note d ) | Class CPR 1 or 2 | |
| Linearity (dB/dB) | ± 0.05 | ± 0.03 |
| Loss threshold (dB) | 0.05 | 0.01 |
| Loss resolution (dB) | 0.01 | 0.01 |
| Sampling resolution (m) | 0.16 to 5 | Multimode: 0.08 to 2.5 |
| Singlemode: 0.08 to 5.0 | ||
| Sampling points | Up to 30 000 | Up to 64 000 |
| Distance uncertainty (*note e) (m) | ± (1 + 0.005 % x distance + sampling resolution) | ± (0.75 + 0.0025 % x distance + sampling resolution) |
| Distance range (km) | 0.65 to 160 | Multimode: 0.1 to 40 |
| Singlemode: 0.65 to 260 | ||
| Typical real-time refresh (Hz) | 2 | 4 |
| Memory capacity | 500 traces | 500 traces |
| Measurement time | User-defined | User-defined |
| Stable source output power f (dBm) | –9 | Multimode: –1.5 |
| Singlemode: -6.5 | ||
| Visual fault locator (optional) | Laser, 650 nm ± 10 nm | Laser, 650 nm ± 10 nm |
| CW Typical Pout in 62.5/125 μm: 3 dBm (2 mW) | CW Typical Pout in 62.5/125 μm: 3 dBm (2 mW) | |
| OPTIONAL POWER METER (note g) | ||
| Calibrated wavelengths (nm) | 850, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490,1510, 1530, 1550, 1570, 1590, 1610, 1625 | |
| Power range (dBm) | 26 to –64 (GeX 2 mm) | |
| Uncertainty | ±5 % ± 0.4 nW (up to 5 dBm) | |
| Display resolution (dB) | 0.01 (–54 dBm to Pmax) | |
| 0.1 (–54 dBm to –64 dBm) | ||
| 1 (–64 dBm to min) | ||
| Automatic offset nulling range (*note h) | Maximum power to —38 dBm | |
| Tone detection (Hz) | 270/1000/2000 | |
| GENERAL SPECIFICATIONS | ||
| Size | (H x W x D) 250 mm x 125 mm x 75 mm (9 7/8 in x 4 15/16 in x 3 in) | |
| Weight 1 kg (2.2 lb) | ||
| Operating Temperature | –18 °C to 50 °C (14 °F to 122 °F) | |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) | |
| Relative humidity | 0 % to 95 % non-condensing | |
| Power | Li-ion batteries 8 hours of continuous operation as per Bellcore TR-NWT-001138 | |
