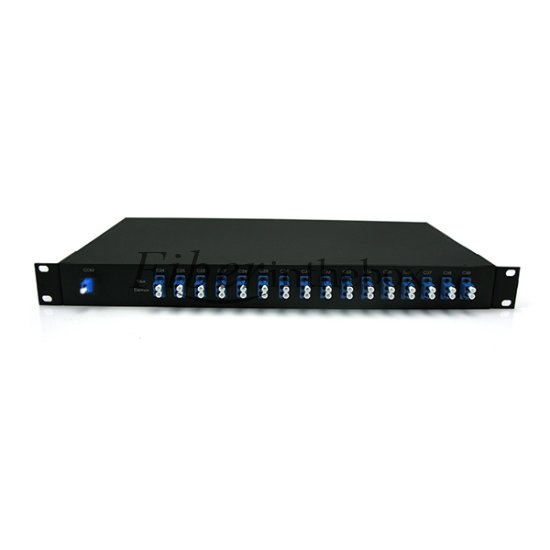

DWDM Mux/Demux modules are pa of a series of high performance products based on silica-on-silicon planar technology. The AWG chips Fiberinthebox used for DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.
Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.
Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.
The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information.
.png)
.jpg)
| 50G TAWG DWDM Speicification | |||||
| Parameter | Unit | ||||
| Gaussian | Flat-Top | ||||
| ITU Band | GHz | ±12.5 | |||
| Channel Spacing | GHz | 50 | |||
| Number of channels | 48, 64, 80, 88, 96 or customize | ||||
| Wavelength accuracy | Max | nm | 0.05 | ||
| Insertion Loss | Max | dB | 4.5 | 6 | |
| -1dB passband | Min | nm | 0.2 | 0.4 | |
| -3dB passband | Min | nm | 0.4 | 0.6 | |
| Isolation | Adjacent Channel | Min | dB | 27 | |
| Non-adjacent Channel | Min | dB | 35 | ||
| Total Crosstalk | Min | dB | 23 | 23 | |
| Ripple in Passband | Max | dB | 1 | ||
| Polarization Dependent Loss | Max | dB | 0.8 | ||
| Directivity | Min | dB | 50 | ||
| Return Loss | Min | dB | 45 | ||
| Polarization Mode Dispersion | Max | ps | 0.5 | ||
| Power Handling | Max | mW | 300 | ||
| Drive voltage (Heater) | Type | V | 5 | ||
| Drive current (Heater) | Type | A | 2 | ||
| Fiber Type | Simplex, Duplex or customized Fiber | ||||
| Operating Temperature | °C | 5~70 | |||
| Storage Temperature | °C | -40~85 | |||
